Product Details:
Payment & Shipping Terms:
|
| Usage: | Stone Carving | Technology: | Trimming,shaping,drilling |
|---|---|---|---|
| Body: | Steel Tube | Operation System: | China NCStudio |
| Rail: | Taiwan Hiwin | Working Speed: | 6m/min |
| Electric Component: | France Schneider | Type: | Gantry Moving |
| Name: | Stone CNC Router | ||
| High Light: | Cnc Stone Router,Stone Engraving Equipment |
||

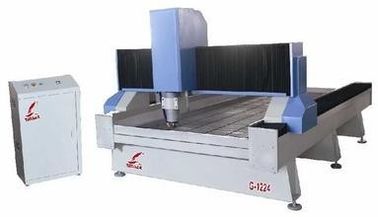

Water Jet Cutting Machine Stone CNC Router Granite Stone Relief Carving
Configuration:
|
Model |
JD3-2015(customize) |
|
Working size |
2500*1300*200mm |
|
Table size |
2800*1400mm |
|
Max speed |
6m/min |
|
Motor |
stepping |
|
Rail |
Taiwan Hiwin |
|
Spindle |
3 kw water cooling |
|
Spindle speed |
24000r/min |
|
Drive system |
China leadshine |
|
Working voltage |
380V |
|
Operation system |
china NCStodio |
|
Water sink |
stainless steel |
|
Motion |
rack |
Features :
1. Integrally cast lathe bed, robust and without distortion
2. Y axis double motor driving ensures stable and smooth movement of the machine
3. High precision rack gear transmission ensures fast speed and high accuracy
4. Optimized mechanical and electrical design with well-selected brand parts minimizes breakdown rate
5. Spindle with high power enables vigorous cutting strength
6. Function of continuous working at stop point by power failure
Sample
