R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification

R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification
R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification

Large Image :  R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification

Product Details:
Place of Origin: Wuxi,China (Mainland)
Brand Name: HAIJUN
Model Number: R4M 2strands
Payment & Shipping Terms:
Minimum Order Quantity: 2 strands
Packaging Details: Container
Delivery Time: 2 months
Payment Terms: T/T,L/C
Supply Ability: 30 strands CCM per year
Detailed Product Description
High Light:

die casting steel

,

steel making machine



R8M 2 Strands Steel Casting Machine 15T per Hour With ISO Centrification



radius: R4M,R6M,R8M,R10M

Strand number : 2 strands

with ISO certification

advanced design

safe operation



Description:



1. Basic standby technical parameters:

Steel billet casting machine radius

4m

Strand quantity

2 strands

Ladle support type

Ladle turret,Ladle car,ladle mounts

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Water cooling , 1 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Manual cutting

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed



2.  Technical process description and capacity of steel billet CCM

Induction furnace:

Nominal capacity

15T

Tap-to-tap cycle

60min

Furnace quantity

2set



Production capacity

Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

100,000t/year



3.  Casting speed, productivity and strand quantity

    R4m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:

Casting sectional area(mm)

80×80



100×100



120×120



Casting speed(m/min)

3.0

2.8

2.6



NO.

Billet

size

Casting speed

hourly output

(tons)

Daily output

24hour

(tons)

Annual output(330days)

(tons)

1

80×80

3.0m/min

7.42

178

58,766

2

100×100

2.8m/min

10.81

259.

85615

3

120×120

2.6m/min

15.69

377

124,266



    The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade

Casting grade(m/min)

Effective deformation rate(ε)

Allowable deformation rate(εmax)

Straight carbon steel

1.8~2.5

Please refer to the computational table

0.25

Low alloy steel

1.3~2.0

Please refer to the computational table

0.15~0.2

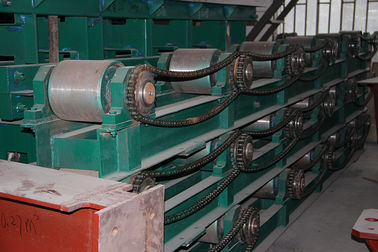

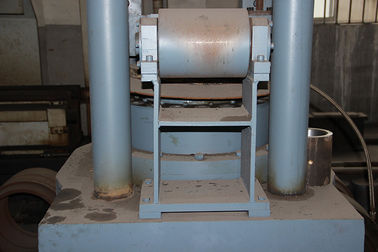

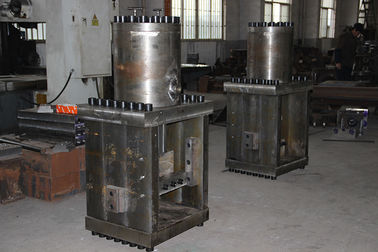

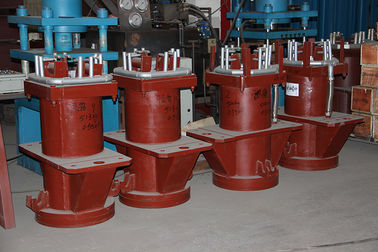

Machine Pictures

R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification 0R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification 1R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification 2R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification 3

R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification 4R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification 5

Factory Pictures

R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification 6R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification 7

R8M 2 Strands Steel Casting Machine 15T per Hour with ISO centrification 8
