10T CCM Billet Casting Machine With 1 Strand and Ladle Car / Ladle Turret

10T CCM Billet Casting Machine With 1 Strand and Ladle Car / Ladle Turret

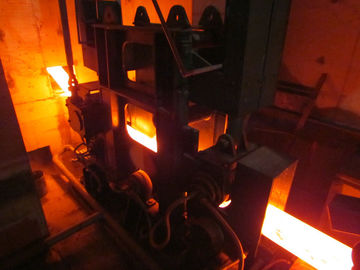

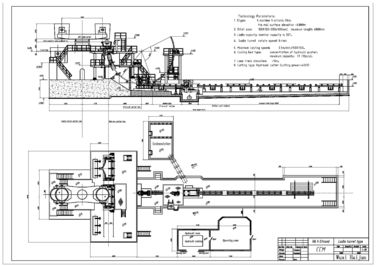

10T CCM Billet Casting Machine With 1 Strand and Ladle Car / Ladle Turret 10T CCM Billet Casting Machine With 1 Strand and Ladle Car / Ladle Turret 10T CCM Billet Casting Machine With 1 Strand and Ladle Car / Ladle Turret

Large Image :  10T CCM Billet Casting Machine With 1 Strand and Ladle Car / Ladle Turret

Product Details:
Place of Origin: Wuxi,China (Mainland)
Brand Name: HAIJUN
Model Number: R6M 1strand
Payment & Shipping Terms:
Minimum Order Quantity: 1 strand
Packaging Details: Container
Delivery Time: 2 months
Payment Terms: T/T,L/C
Supply Ability: 30 strands CCM per year
Detailed Product Description
High Light:

die cast machines

,

custom metal casting



10T CCM Billet Casting Machine With 1 Strand and Ladle Car / Ladle Turret



  1. Semi-portal, cross sliding function
  2. Ladle car or ladle turret
  3. radius: 6m
  4. Strand number :1 strand
  5. with ISO certification



We can produce high quality continuous casting machines from 1 to 8 strands with the lowest equipment manufacturing cost.We can design, manufacture the up-to-date billet continuous casting machine in accordance with the user's steelmaking capacity, billet size, steel grades and the user's field conditions.





Description:



1. Basic standby technical parameters:



Steel billet casting machine radius

6m

Strand quantity

1 strand

Ladle support type

Ladle car or ladle turret

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Water cooling , 1 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Flame cutting machine

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed



2.  Technical process description and capacity of steel billet CCM



Induction furnace:



Nominal capacity

10T

Tap-to-tap cycle

60min

Furnace quantity

2set



Production capacity



Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

100,000t/year



3.  Casting speed, productivity and strand quantity



    R6m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:



Casting sectional area(mm)

100×100

125×125

150×150

Casting speed(m/min)

3.0

2.7

2.5



NO.

Billet

size

Casting speed

hourly output

(tons)

Daily output

24hour

(tons)

Annual output(330days)

(tons)

1

100×100

3.0m/min

12.01

288.

95123

2

125×125

2.7m/min

16.89

405

133,767

3

150×150

2.5m/min

21.72

508

167,640



    The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade

Casting grade(m/min)

Effective deformation rate(ε)

Allowable deformation rate(εmax)

Straight carbon steel

1.8~2.5

Please refer to the computational table

0.25

Low alloy steel

1.3~2.0

Please refer to the computational table

0.15~0.2



4. CCM equipment parts list



Equipment name

Weight

Model and specification

Unit

Quantity




1

Ladle car

5T



Set

2



2

Tundish car

2.5×2=5T



Set

2



3

Tundish

1.4×2=2.8T



piece

2



4

Mould

0.5×2=1T

150×150

Set

1



5

Foot roll of mould

0.01×2=0.02T



Set

1



6

Mould  cover

0.1×2=0.2T



Set

1



7

Oscillator device

2×2=4T



Set

1



8

Secondary cooling spray tube

0.5×2=1T



Set

1



9

Secondary cooling guiding section rod

0.7×2=1.4T



Set

1



10

Secondary cooling vapor exhausting system

1.5T



Set

1



11

Withdrawal  and straightening machine

5×2=10T



Set

1



12

Casting blank vibration prevention system

0.3×2=0.6T



Set

1



13

Dummy bar

0.9×2=1.8T

150×150

Set

1



14

Dummy bar storage device

0.7×2=1.4T



Set

1



15

Shears approach roller

2×2=4T



Set

1



16

Flame cutting machine

3T



Set

1



17

Automatic cut-to-length device

0.5T



Set

1



18

Travelling roller

2×2=4T



Set

1



19

Knockout roller

3.5T



Set

2



20

Steel transverse delivering machine

3.5T



Set

1



21

Hydraulic station system

2T



Set

1



22

Secondary cooling water breaker





Set

1



23

Cooling automation water  distribution plant

1T



Set

1



24.1

Control panel





Set

1



24.2

Field instrument





Set

1



24.3

Computer system





Set

1



25

Steel platform

48T





1
