Tube To Tube Sheet All Position Pulse TIG Welding Machine With Water Cooling System

Tube To Tube Sheet All Position Pulse TIG Welding Machine With Water Cooling System
Tube To Tube Sheet All Position Pulse TIG Welding Machine With Water Cooling System Tube To Tube Sheet All Position Pulse TIG Welding Machine With Water Cooling System

Large Image :  Tube To Tube Sheet All Position Pulse TIG Welding Machine With Water Cooling System

Product Details:
Place of Origin: China
Brand Name: WTEC
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiation
Packaging Details: Negotiation
Payment Terms: Negotiation
Detailed Product Description
High Light:

automatic tig welding machine

,

tig weld machine

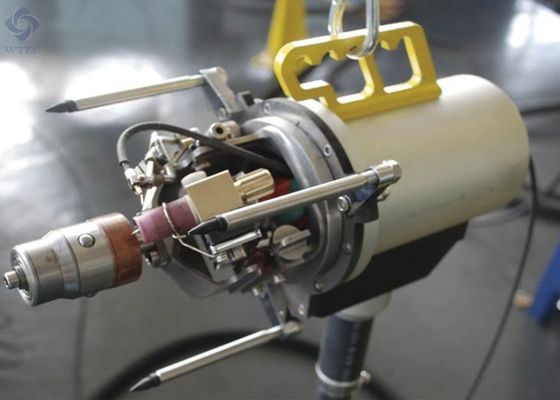

Tube To Tube Sheet All Position Pulse TIG Welding Machine With Water Cooling System





Description:





Tube to tube sheet strength welding (fillet welding) or sealing welding (self fluxing) is adopted.

All position pulse TIG welding, welding parameters can be set in segments.

Integrated design of welding power sources, electric control and water cooling system, with compact structure.

Large wire spool is adopted, to avoid frequent wire replacing.







Applications:

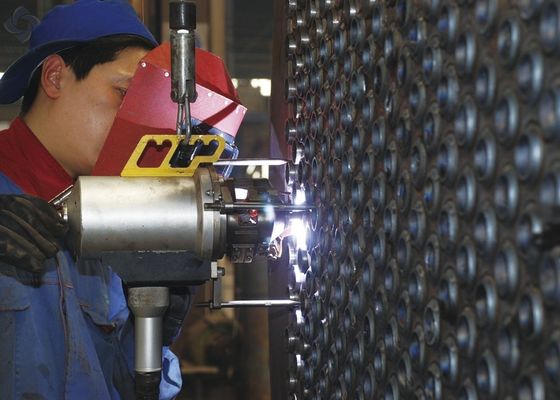

It is mainly used for welding products of pressure vessel, heat exchanger, etc., to realize all position tube to tube sheet automatic TIG welding, which is applicable to various materials such as carbon steel, stainless steel, titanium alloy, and zirconium alloy etc.







Specifications:





Tube diameter φ12-80mm
Rated frequency 50Hz
Output current 4~315A
Rated duty cycle 60%
Welding current pulse frequency 0.5~80Hz
Peak current pulse duty factor 25~75%
Argon flow 5~8L/min
Water tank volume 10L
