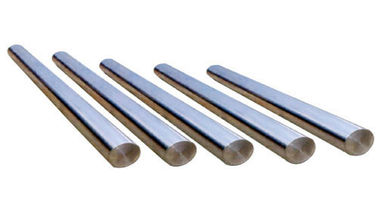

Precision Steel Shaft, Piston Rods Induction Hardened Rod For Heavy Machine

Large Image : Precision Steel Shaft, Piston Rods Induction Hardened Rod For Heavy Machine

Product Details:

Place of Origin:	China
Brand Name:	HY
Certification:	ISO9001:2008

Payment & Shipping Terms:

Minimum Order Quantity:	5 tons
Price:	Negotiation
Packaging Details:	Anti rust oil to be applied on material and each rod to be packed in paper sleeve
Delivery Time:	30days
Payment Terms:	L/C, T/T
Supply Ability:	30tons a day

Contact Now

Detailed Product Description

Name:	Precision Steel Shaft	Material:	Steel
Diameter:	6mm - 1000mm	Length:	1000mm - 8000mm
Surface Treatment:	Chrome Plating	Chrome Thickness:	20-30 Micron
High Light:	precision shafts , metal shafts

Stainless Steel Shaft , Piston Rod Induction Hardened Rod For Heavy Machine

Detailed Product Description

1. Material: CK45, ST52, 20MnV6, 42CrMo4, 40Cr

2. Ground and chrome plated

3. ISO9001:2008

4. Yield strength: Not less than 355 N/MM2

5. Advanced inspection apparatus

Detailed Description
1.CHEMICAL COMPOSITION

Material	C%	Mn%	Si%	S%	P%	V%	Cr%
Ck45	0.42-0.50	0.50-0.80	0.04	0.035	0.035
ST52	0.22	1.6	0.55	0.035	0.04
20MnV6	0.16-0.22	1.30-1.70	0.10-0.50	0.035	0.035	0.10-0.20
42CrMo4	0.38-0.45	0.60-0.90	0.15-0.40	0.03	0.03		0.90-1.20
40Cr	0.37-0.45	0.50-0.80	0.17-0.37				0.80-1.10

2.MECHANCIAL PROPERTIES

Material	T.S N/MM2	Y.S N/MM2	E%(MIN)	CHARPY	CONDITION
CK45	610	355	15	>41J	NORMALIZE
CK45	800	630	20	>41J	Q + T
ST52	500	355	22		NORMALIZE
20MnV6	750	590	12	>40J	NORMALIZE
42CrMo4	980	850	14	>47J	Q + T
40Cr	1000	800	10		Q + T

3. SUPPLY CONDITION
    Ground  and  chrome plated
4. CHROME THICKNESS
     20 to 30 micron
5. SURFACE ROUGHNESS
     Ra≤0.2 micron and  Rt≤2 micro
6. TOLERANCES ON DIA
    ISO f7 on the diameter
7.OVALITY
Half of the tolerance ISO f7
8. STRAIGHTNESS
   ≤0.2MM/M
9. SURFACE HARDNESS
   850-1150HV (vickers 100g)
10.COHESION
   No cracks,breaking or detaching after thermic shock(warming up at 300 celsius degrees and cooling
   in water)
11 .POROSITY
     Test according to ISO 1456/1458 and result yaluation according to ISO 4540 rating 8-10
12 CORROSION RESISTANCE
     Test in natural salt spray according to ASTM B 117-72hours
     Results evaluation according to ISO 4540 RATING 7-10
13. WELDABILITY
      Good
14. PACKING
     Anti rust oil to be applied on material and each rod to be packed in paper sleeve
15. CERTIFICATE
     All certificate related with material heat treatment and plating is required

From 2017, we established an intelligent workshop with all automatic machined. There are five lines only for producing exported products. The new workshop is executing 6S strictly. The production capacity will be 1500 tons per month.
