Induction Pipe Heater For Preheating Welding

Induction Pipe Heater For Preheating Welding
Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding Induction Pipe Heater For Preheating Welding

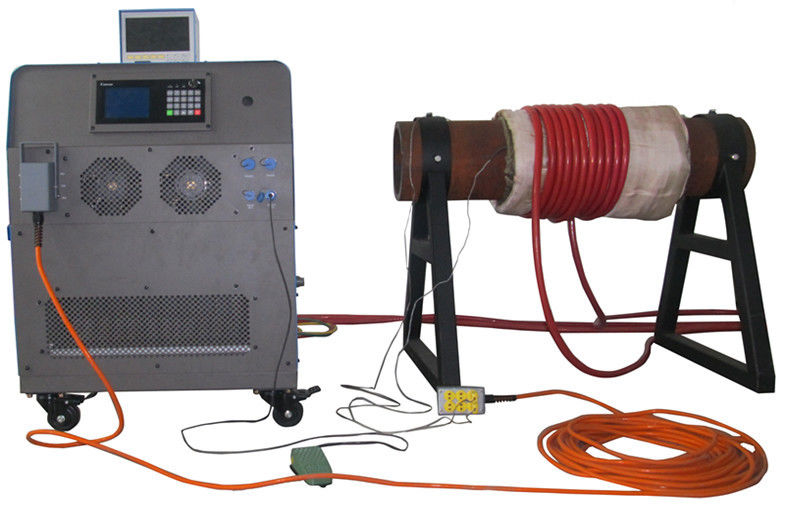

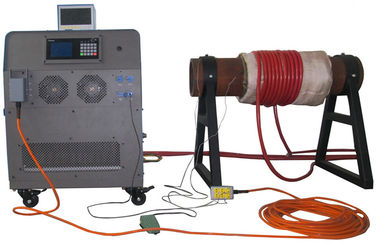

Large Image :  Induction Pipe Heater For Preheating Welding

Product Details:
Place of Origin: Shenzhen china
Brand Name: canroon
Certification: CE ISO9001:2008
Model Number: CR2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: 45000US $ FOB
Packaging Details: Carton or depends on you
Delivery Time: A week after confirmed payment
Payment Terms: FOB
Supply Ability: 20 Piece/Pieces per Week
Detailed Product Description
Input Power: 380V 3-Phase Temperature: Max 1450°F
Transportation: By Sea Or By Air Resonance: Series Resonance
Control Model: Digital Control Rated Output: 80KW 1-35KHZ
High Light:

induction hardening machines

,

induction hardening equipment

6 TC Input Induction Heating Machine 80Kw For Preheating Welding



Quick Detail:



Type:Other

Place of Origin:China (Mainland)

Brand Name:Canroon

Model Number:CR2000-080A-14T

Voltage:380V

Current:122A

Rated Capacity:80KW

Rated Duty Cycle:80KW

Dimensions:880*663*982

Weight:201Kg

Usage:induction temperature stress relievers

Certification:CE ISO9001:2008

After-sales Service Provided:Overseas service center available

Process:Induction heating equipment

Input Power:380V,3-Phase

Temperature recorder:6 Channel temperature recorder



Description:



The new induction preheater CR2000 can be used as an air-cooled system for temperatures up to 1450º F . The preheater features multiple outputs, six control thermocouples to ensure uniform heating, significantly faster time to temperature than conventional heating, and an extremely easy-to-use operator interface that allows the operator to program ramp and hold temperature times. It also tutors the operator to achieve maximum output from the induction coils.



Applications:



With the introduction of the Induction Pipe preheat , this simple and cost-effective heating process can be applied in the following applications to deliver fast and consistent heat:

  • Welding fabrication and construction;
  • Preheating of welds;
  • Post-weld heat treatment;
  • Coating removal;
  • Shrink Fit and so on



Specifications:



Input Amperes at Rated Output

380V:122A

Thermal conversion efficiency

More than 90%

Maximum Rated output

80KW

Cooling Mode

Air cooled

Input Power

380V 3-Phase,50HZ

Rated Output

80KW at 100% duty cycle,1-35KHZ

TC input

6 circuit

Digital Recorder

Optional

Control Model

Digital Control

Resonance

Series Resonance

Temperature

Max 1450°F

Dimensions

H:880MM W:663MM D:982MM

Transportation

By sea or By Air

Weight

201KG

Warranty

12 Months



Competitive Advantage:



1.Versatile Mobility:optional running gear designed for construction and maintenance
2.On-board temperature control:provide for manual or temperature based programming in a simple-to-learn operator interface
3.Muitiple control thermocouple inputs:available to control on the hottest TC during heating and coolest TC during cooling for
4.uniform heating and quanlity
5.Open output detection:prevents system operation without a covered output receptacle(cable or protective plug)
6.Isolation fault protection:provides automatic system shut down power source output to ground.
7.Low consumable costs:No fuel costs and minimal insulation costs.insulation is resuable and may be used 50 time or more,reducing costs of disposal and replacement.
8.Uniform heating:maintained along and through the heat zone by using induction to heat within the material.the surface of the part is nor marred by localized conducted heat at higher than specified temperatutes.
9.Time-to-temperature:faster than conventional processes due to methed of applying the heat,reducing the heating heating recyle time.
10.Improved working environment: With welding,welders are not exposed to open flame,explosive gases and hot elements associated with fuel gas heating and resistance heating.
11.High energy-efficeent systems:(more than 90 percent efficient)transfers more energy to the part,decreassing heating times and impoving power efficietnt.
12.Easy Set-up:achieved using preheat blankets or flexible heating cables combined with user-friendly insulation blankets.



Tag:Pipe preheat
