Product Details:
Payment & Shipping Terms:
|
| High Light: | induction hardening,hardening heat treating machine,CNC hardening machine tool |
||
|---|---|---|---|

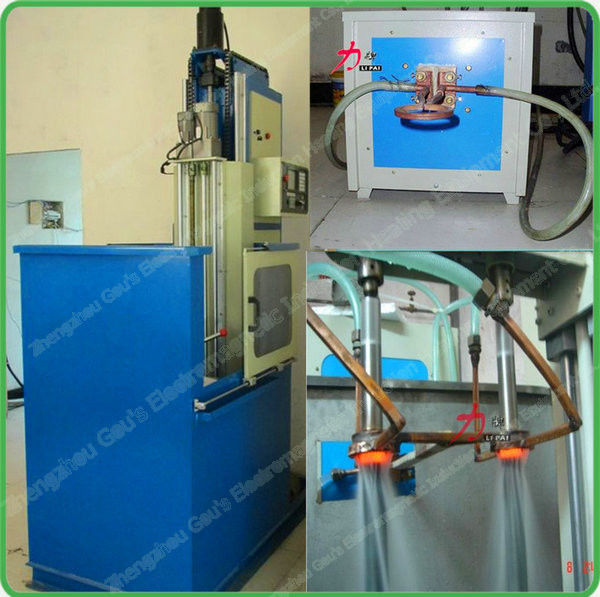

Factory supply top quality induction hardening machine tool：
Model | WH-VI-80 | WH-VI-120 | WH-VI-160 |
Max output power | 80KW | 120KW | 160KW |
Working voltage range(AC) | 342V~430V | ||
Work Power | Three phrase 380V/50-60Hz | ||
Oscillation Frequency | 10-35KHZ | ||
Cooling water pressure | 0.1~0.3MPa | ||
Max input current | 130A | 165A | 220A |
Cooling water flow(host) | 28L/min(0.1MPa) | 29L/min(0.2MPa) | 29L/min(0.2MPa) |
Cooling water flow(transformer) | 20L/min(0.1MPa) | 22L/min(0.2MPa) | 22L/min(0.2MPa) |
Host weight(kg) | 80±5% | 80±5% | 85±5% |
Transformer weight(kg) | 77±5% | 90±5% | 90±5% |
Size of Host() | 650*520*1100 | ||
Size of transformer() | 500*800*580 | ||
Color of host | Blue/White | ||
Color of transformer | Blue/White | ||
Factory supply top quality induction hardening machine toolApplications:
We are committed to high quality product and perfect service,and best warranty is
"One year of free replace the spare parts."
Zhengzhou Gao'sproduce high quality products and have perfect after-sale service.
If you are interested in our production,pls.feel free tocontact me.
