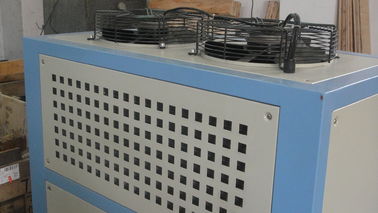

Easy Installation Chiller Water Cooling Machine ROHS Approved
Quick Detail:
Name |
Chiller |
Application |
Water Cooling |
Work power |
360V-520V |
Input power |
12HP |
Model Number |
GY-12HP |
Certificate |
CE,SGS, ROHS |
Major features
1. Selection of high-quality equipment compressor, built in security protection settings, lowest noise, lowest electricity consumption and longest service life.
2. Easy installation and maintenance, small footprint, and fit large temperature difference and special occasion.
3. Air-cooled condensers, high heat transfer efficiency
4. Oxygen density strong, eliminate the phenomenon of the refrigerant leakage, especially fit the water resources shortage or water quality degree of hardness high area.
5. Configure precision electronic temperature controller, precise control of water temperature within 5-25 degrees
Specification:
Type |
GY |
12HP |
|
Refrigerating capacity |
W |
34500 |
|
Kcal/hr |
29670 |
||
USRT |
9.82 |
||
|
Input power |
12HP |
|
Compressor |
Refrigeration system |
|
1 |
Type/refrigeration |
/R22/R407C Scroll/R22/R407C |
||
Power supply |
380V - 3Ph - 50Hz |
||
Refrigeration Control |
External Equalizer Thermal Expanslon Valve |
||
evaporator
|
Type |
Finned-tube Comdenser |
|
Fan power |
W |
750 |
|
Type |
Bushing-type |
||
Water Flow Rate |
m3/h |
5.93 |
|
Pipe Size |
IN |
2" |
|
Water tank capacity |
L |
210/standard |
|
Water Pump |
Power |
KW |
0.75 |
Lift |
m |
18 |
|
Protection Device |
High/low pressure switch; fusible plug thermal overload; phase reversal replay chilled water low temp switch |
||
Dimension |
Length(A) |
mm |
900 |
Width (B) |
mm |
1200 |
|
Height (C) |
mm |
1800 |
|
Weight |
Kg |
430 |
|
Noise |
dB(A) |
75 |
