Steel Continuous Casting Machine Parts - Detecting System
with ISO certification
advanced design
safe operation
Low energy and high efficiency
We can produce high quality continuous casting machines from 1 to 8 strands with the lowest equipment manufacturing cost.We can design, manufacture the up-to-date billet continuous casting machine in accordance with the user's steelmaking capacity, billet size, steel grades and the user's field conditions.
Basic Automation

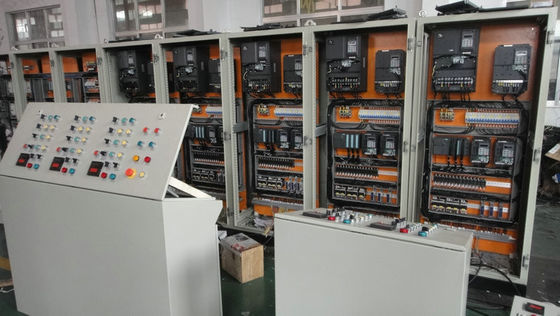

(1)Control equipment
Based automation and control equipment used in the core of PLC control device (electronic control and instrumentation)according to control area is divided into distributed control unit, on-site controller is a typical distributed I / O and Profibus - DP Industrial Bus products.

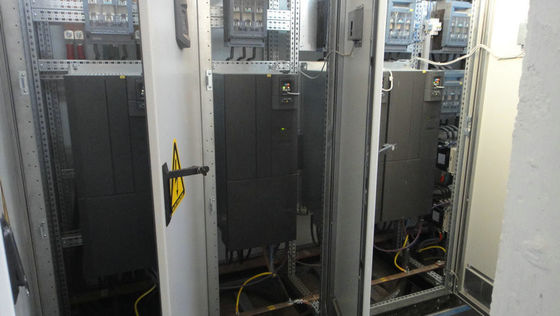

(2)Transmission equipment
Full range adopt AC drive, speed motor control to use an all digital AC frequency control devices, conventional motor control.

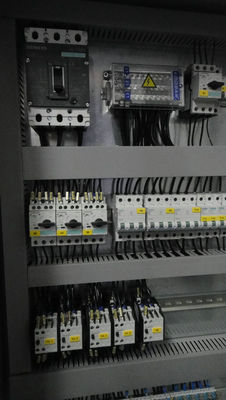

Use MCC motor control center, all devices connected to the Profibus - DP-line control and data communications.
(3) Regulation and control instruments
Instrumentation and control devices are controlled by PLC, analog data acquisition to be completed, the process parameter setting and the loop regulation.

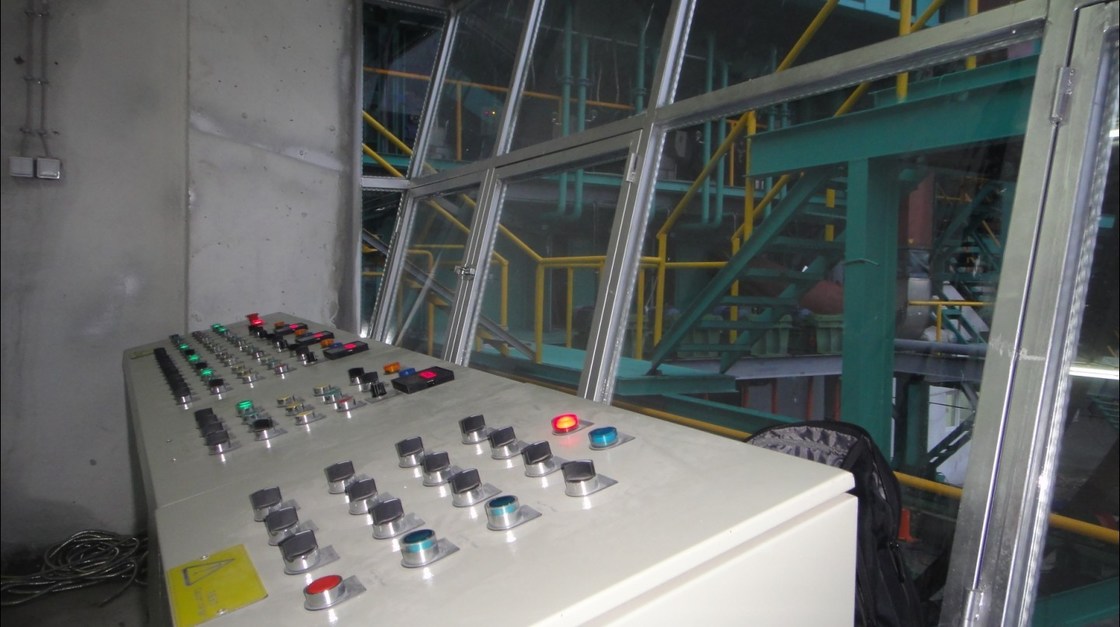

(4) Distributed remote control
Control console, the box set with remote distributed I / O modules, composed of intelligent control mode, the Profi-DP field bus line constitutes a distributed remote control, the system simple and reliable.
(5)HMI Human Machine Interface - monitor operating station
HMI operator station computer monitoring system set in an open industrial Ethernet, data acquisition and process monitoring.
