R6M 3S Billet CCM / Hydraulic Billet Cutting Machine

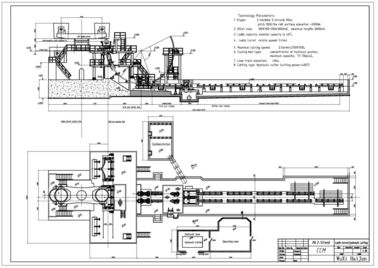

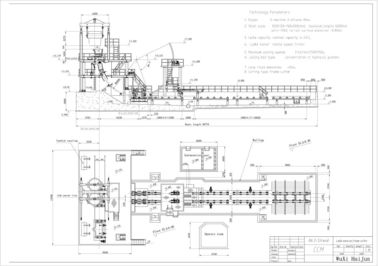

Large Image : R6M 3S Billet CCM / Hydraulic Billet Cutting Machine

Product Details:

Place of Origin:	Wuxi,China (Mainland)
Brand Name:	HAIJUN
Model Number:	R6M 3strands

Payment & Shipping Terms:

Minimum Order Quantity:	3 strands
Packaging Details:	Container
Delivery Time:	2 months
Payment Terms:	T/T,L/C
Supply Ability:	30 strands CCM per year

Contact Now

Detailed Product Description

Highlight:

die casting machinery

bullet casting equipment

R6M 3S Billet CCM / Hydraulic Billet Cutting Machine

Ladle turret, Ladle car

Semi-portal cross sliding function

radius: R6M

Strand number : 3 strands

with ISO certification

advanced design

Description:

1. Basic standby technical parameters:

Steel billet casting machine radius	6m
Strand quantity	3 strands
Ladle support type	Ladle turret,Ladle car
Tundish carriage	Semi-portal, cross sliding function
Casting method	Metering nozzle, open casting
Secondary cooling	Water cooling , 1 adjusting circuit
Withdrawal straightening machine	Totally 5 roller, progressive straightening
Roll table	Chain group centralized drive
Dummy bar	Rigid, with self-adapting dummy bar head
Billet cutting	Hydraulic cutting machine
Billet conveying	Group centralized live roller table
Cooling bank type	Simple cooling bed

2. Technical process description and capacity of steel billet CCM

Induction furnace:

Nominal capacity	30T
Tap-to-tap cycle	60min
Furnace quantity	2set

Production capacity

Working days	330 days/year
Average number of daily furnace	24/day
Production capacity	300,000t/year

3. Casting speed, productivity and strand quantity

R6m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:

Casting sectional area(mm)	100×100	125×125	150×150
Casting speed(m/min)	3.0	2.7	2.5

For 1strand CCM production list:

NO.	Billet size	Casting speed	hourly output (tons)	Daily output 24hour (tons)	Annual output(330days) (tons)
1	100×100	3.0m/min	12.01	288.	95123
2	125×125	2.7m/min	16.89	405	133,767
3	150×150	2.5m/min	21.72	521	172,061

The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade	Casting grade(m/min)	Effective deformation rate(ε)	Allowable deformation rate(ε_max)
Straight carbon steel	1.8～2.5	Please refer to the computational table	0.25
Low alloy steel	1.3～2.0	Please refer to the computational table	0.15～0.2

4. CCM equipment parts list

№	Equipment name	Weight	Model and specification	Unit	Quantity
№	Equipment name	Weight	Model and specification	Unit	Quantity
1	Ladle turret	21T		Set	1
2	Tundish car	2.5×2=5T		Set	2
3	Tundish	1.4×2=2.8T		piece	2
4	Mould	0.5×2=1T	150×150	Set	3
5	Foot roll of mould	0.01×2=0.02T		Set	3
6	Mould cover	0.1×2=0.2T		Set	3
7	Oscillator device	2×2=4T		Set	3
8	Secondary cooling spray tube	0.5×2=1T		Set	3
9	Secondary cooling guiding section rod	0.7×2=1.4T		Set	3
10	Secondary cooling vapor exhausting system	1.5T		Set	1
11	Withdrawal and straightening machine	5×2=10T		Set	3
12	Casting blank vibration prevention system	0.3×2=0.6T		Set	3
13	Dummy bar	0.9×2=1.8T	150×150	Set	3
14	Dummy bar storage device	0.7×2=1.4T		Set	3
15	Shears approach roller	2×2=4T		Set	3
16	Flame cutting machine	3T		Set	3
17	Automatic cut-to-length device	0.5T		Set	3
18	Travelling roller	2×2=4T		Set	3
19	Knockout roller	3.5T		Set	6
20	Steel transverse delivering machine	1.5T		Set	3
21	Hydraulic station system	2T		Set	1
22	Secondary cooling water breaker			Set	3
23	Cooling automation water distribution plant	1T		Set	1
24.1	Control panel			Set	1
24.2	Field instrument			Set	1
24.3	Computer system			Set	1
25	Steel platform	68T			1
