Suitable Pipe Diameter: | DN15-6000mm | Principle: | Transit-time Ultrasonic Flowmeter |
---|---|---|---|
Pipe Material: | Steel, Stainless Steel, Cast Iron, Copper, Cement Pipe, PVC, Aluminum, Glass Steel Product, Liner Is Allowed. | Temperature: | Standard Transducer: -30--90℃; High-temperature Transducer: -30--140℃ |
Turbidityge: | Under 10000ppm And Less Bubble | Flow RFlow Rate Rangeate: | 0~±10m/s |
Type Of Liquid: | Water (hot Water, Chilled Water, City Water, Sea Water, Waste Water, Etc.); Sewage With Small Particle Content; Oil (crude Oil, Lubricating Oil, Diesel Oil, Fuel Oil, Etc.); Chemicals (alcohol, Acids, Etc.); Plant Effluent; Beverage, Liquid Food; Ultra-p | Display: | 4×1 6 Character LCD With Backlight, Support The Language Of Chinese, English And Italy |
High Light: | ultrasonic flow meter,portable flow meter |

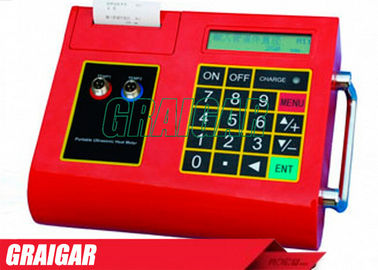

Portable Ultrasonic Heat meter TUC-2000E Flowmeter Temperature/Heat Meter
[ Feature ]
High Accuracy measuring
Linearity: better than 0.5%, Repeatability: better than 0.2%, Accuracy: better than ±1%
Non-intrusive measuring
Non-intrusive, clamp-on transducer, no pressure drop, no pipe disturbance.
Wide measuring range
Several types transducer for selection, measuring pipe size from DN15mm to DN6000mm
Chinese & English menu
Chinese & English display, easy to operate.
Built-in printer
Built-in mini thermal printer with instant and timing print function
Built-in data logger
Uplink over 20 measuring data to computer or SD card, convenient for the data processing and applications
Multi-signal input &output
Multiple signal interface easy for input and output signals
[ Main Feature ]
Items |
Specifications |
Main unit |
2 line x 20 character LCD with backlight Working temperature: -25--60℃ Mini thermal printer with 24 line character output 4x4+2 pushbutton keypad RS-485 interface for networking |
Signal input & output |
1 channel 4-20mA output 1 channel OCT output 1 channel relay output 3 channel 4-20mA input |
Medium |
Water (hot water, chilled water, city water, sea water, waste water, etc.); Sewage with small particle content; Oil (crude oil, lubricating oil, diesel oil, fuel oil, etc.); Chemicals (alcohol, acids, etc.); Plant effluent; Beverage, liquid food; Ultra-pure liquids; Solvents and other liquids |
Flow rate Range |
0~±10m/s |
Accuracy |
Better than ±1% |
Battery |
Built-in rechargeable Ni-MH rechargeable battery, provide over 20 hours of continuous operation |
Power Consumption |
1.5W |
Power supply |
Built-in rechargeable Ni-MH battery (for 20 hours operation) or AC 220V |
Weight & Dimensions |
2.5kg ; 225*180*67mm: |
Remarks |
With a high strength carrying case suitable for normal and harsh environment |
