Product Details:
Payment & Shipping Terms:
|
Name: | Tube Welding Machine | Type:: | Welded Steel Pipe Production Line |
---|---|---|---|
High Light: | seamless tube mill,tube mill machine |

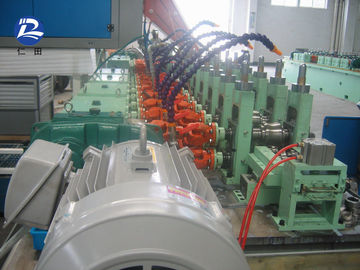

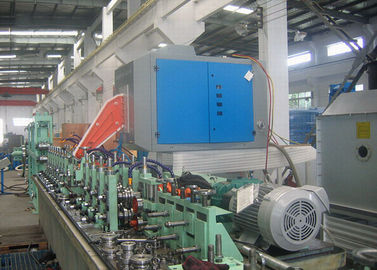

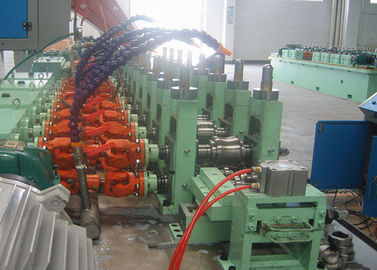

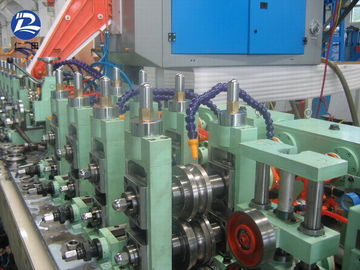

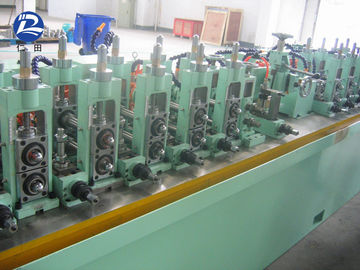

Industrial VZH-32z Welded Tube Mill , High Frequency Weld Pipe Mill Machinery
Stainless Hydraulic Tubing Welded Tube Mill With Steel Pipe Production Line
Quick Detail:
1. Type: welded steel pipe production line
2. Model Number:VZH-32z
Description:
Tube mill are designed to produce round tubes with Diameter 7mm~273mm and shaped tube(square & rectangular), the tube mainly applied in manufacturing middle-pressure fluid tubes, boiler tubes, gas pipes, galvanize pipes, transformer tubes, mechanical parts, frame tubes, fitness equipment pipes, furniture tubes, decoration tubes, etc..
Basic configuration:
Double-heads uncoiler→Shearing machine & Butt welding machine→Vertical cage→Forming machine→High frequency induction welder→De-burr frame(Outside) →Seam grind unit→Cooling trough→Sizing mill→Turkey head & Straightening→CNC flying saw→Run-out table.
Applications:
Specifications:
NO |
Name |
Technical Parameters |
Unit |
1 |
Tube OD |
12.7--38.1 |
mm |
2 |
Tube Wall Thickness |
0.5-1.75 |
mm |
3 |
speed |
20-90 |
M/min |
4 |
Main Power |
45*2 |
kw |
5 |
HF welded |
100 |
kw |
Competitive Advantage:
Installation, commissioning, training, after-sales service
1,Installation and acceptance
1.1 After the machinery from the supply side to the demand side, the demand side is responsible for unloading facility.
1.2 Supplier is responsible for the mechanical commissioning.
1.3Demand side should accept the machine after bending specimens according to demand’s request (subject to the requirements of the contract)
2,Training
Train to all the adjustment workers, operators, maintenance workers (hydraulic, pneumatic lubrication system maintenance personnel, electrical, electronic and control systems personnel, CNC programmers, technical staff),to make sure they can operate, adjust, repair, programming properly.
3,Service.
3.1 Quality "three guarantees" period: 12 months form the commissioning date of acceptance by the demand side
3.2 During the "three guarantees" period of equipment failure, the supplier is responsible for free repair, replacement parts (except for the demand side in violation of the rules of accidental damage caused).
3.3 Responding to the supplier to provide services required by the buyer receives telephone (fax) the day after, within 48 hours (except holidays) sent to the demand-side scene.
Contact Person: Mr. zhang
Tel: 18810288990
Fax: 86-189-9086-7684
