Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA

Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA
Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA

Large Image :  Back Row Machine Room Three Phase HF Welding Machines 0.35 ~ 0.45 Mpa 11KVA

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: Kinte
Certification: Certificate of conformity of quality management system certification
Model Number: customized
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Customized
Packaging Details: Customized
Delivery Time: Customized
Payment Terms: TT,L/C
Supply Ability: Customized
Detailed Product Description
High Light:

hf welding machine

,

hydraulic welding machine

Back Row Machine Room Three Phase HF Welding Machines 0.35 0.45 Mpa 11KVA



Quick Detail:



Using high frequency induction power supply output low voltage and high current,the use is on the solder points,Solder joint surface produce high-frequency electronic movement,forming eddy current,all the electrons move to generate heat (Skin effect and proximity effect),Make solder ontology surface temperatures to rise to the welding temperature,melting the welding ring and achieve the result of the solder joint sealing.

This equipment is main used for refrigerator,freezer,air-conditioner etc Refrigeration appliance pipe welding.

  1. All the business of Kinte is international and abroad only.

      2. We have a large team and we provide one-station service



Specifications:



1   Model TRHF-KV-Ⅲ

2   Input pressureThree phase 380V±10% 50/60HZ

3   The maximum input power: 11KVA

4   The maximum output power    10KVA

5   Oscillation frequency 21-27KHz

6   Cooling Model water-cooling

7   Water quality requirement  distilled water

8   Hydraulic pressure 0.35~0.45 Mpa

9   Flow   10 ℓ/min

10 Equipment environment requirements    Temperature 5~40℃   humidity<85%



Description:



High frequency welding machine can solve the problem of refrigeration electrical appliances enterprise welding equipment



Welding leakage and welding plugging caused in-refrigeration

The welder needs high technical skills ,and the training time is very long.

Personnel fluidity big, high turnover rate

The solder amount is very big and the cost is too high

Combustible gas, open flame operation will have safety hidden trouble

Exhaust emissions, resulting in environmental pollution



The welding character of high frequency welding machine.

Intelligent integration and easy to operate

Uniform heating, the depth of welding point is the same

Avoid wasting and can put down the production cost

Reduce the welding leakage, improve the quality of the refrigerator

No open fire operation which is safe and environmental protection



Applications:

1. Welding in front of the evaporator

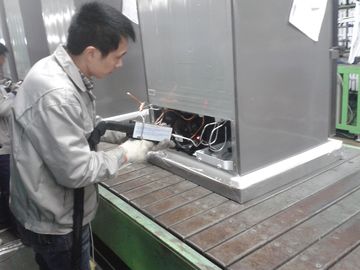

2. Back row machine room welding



Competitive Advantage:



Welding manner

Assemble percent of pass at one time

The market feedback rate(1year)

flame weld

3‰

1‰

 High-frequency welding

1‰

0.1‰





Welding manner

copper content

silver content

Fire welding(welding rod)

0.60g

0.50g

 High frequency welding(welding ring)

0.35g

0.21g

Single point welding material saving

0.25g

0.29g



Welding manner

The qualification rate of one time assemble

Copper joints point

The qualification rate of one time assemble

sliver joints point

Market feedback rate

Copper welding point

Market feedback rate

sliver welding point

Fire flame welding

2‰

4‰

0.5‰

1.7‰

High frequency welding

1‰

2‰

0.1‰

0.2‰

  1. We provide one-station service
  2. What you need is a thought then we make it come true.
  3. We have a big team,we are always ready to go for installation and maintenance and training.
  4. We have many abroad experience.
