Custom Square R6M 2S CCM / Steel Billet Casting , 1 Adjusting Circuit

Custom Square R6M 2S CCM / Steel Billet Casting , 1 Adjusting Circuit
Custom Square R6M 2S CCM / Steel Billet Casting , 1 Adjusting Circuit Custom Square R6M 2S CCM / Steel Billet Casting , 1 Adjusting Circuit Custom Square R6M 2S CCM / Steel Billet Casting , 1 Adjusting Circuit

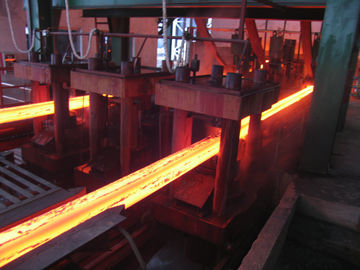

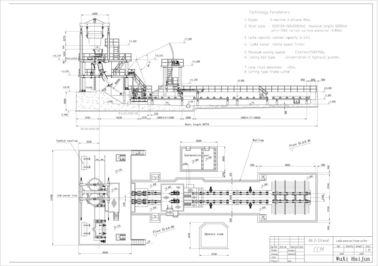

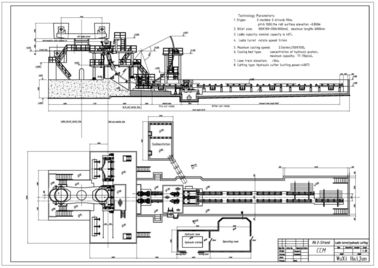

Large Image :  Custom Square R6M 2S CCM / Steel Billet Casting , 1 Adjusting Circuit

Product Details:
Place of Origin: Wuxi,China (Mainland)
Brand Name: HAIJUN
Model Number: R6M 2strands
Payment & Shipping Terms:
Minimum Order Quantity: 2 strands
Packaging Details: Container
Delivery Time: 2 months
Payment Terms: T/T,L/C
Supply Ability: 30 strands CCM per year
Detailed Product Description
High Light:

high pressure die casting

,

continuous casting machines




Custom Square R6M 2S CCM / Steel Billet Casting , 1 Adjusting Circuit





Quick Detail:

radius: R6M, R8M, R10M

Strand number :1 / 2 strands

with ISO certification

advanced design

safe operation

Rectangular bloom / square  billet



We can produce high quality continuous casting machines from 1 to 8 strands with the lowest equipment manufacturing cost.We can design, manufacture the up-to-date billet continuous casting machine in accordance with the user's steelmaking capacity, billet size, steel grades and the user's field conditions.





Description:



1. Basic standby technical parameters:

Steel billet casting machine radius

6m

Strand quantity

2 strands

Ladle support type

Ladle turret,Ladle car

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Water cooling , 1 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Hydraulic cutting machine

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed



2.  Technical process description and capacity of steel billet CCM

Induction furnace:

Nominal capacity

15T

Tap-to-tap cycle

60min

Furnace quantity

3sets



Production capacity

Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

200,000t/year



3.  Casting speed, productivity and strand quantity

    R6m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:

Casting sectional area(mm)

100×100

125×125

150×150

Casting speed(m/min)

2.8

2.6

2.4



NO.

Billet

size

Casting speed

hourly output

(tons)

Daily output

20hour

(tons)

Annual output(300days)

(tons)

1

100×100

2.8m/min

10.55

211

63302

2

125×125

2.6m/min

15.31

306

918445

3

150×150

2.4m/min

20.35

407

122,083



    The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade

Casting grade(m/min)

Effective deformation rate(ε)

Allowable deformation rate(εmax)

Straight carbon steel

1.8~2.5

Please refer to the computational table

0.25

Low alloy steel

1.3~2.0

Please refer to the computational table

0.15~0.2



    4. CCM equipment parts list

Equipment name

Weight

Model and specification

Unit

Quantity




1

Ladle turret

17T



Set

1



2

Tundish car

2.5×2=5T



Set

2



3

Tundish

1.4×2=2.8T



piece

2



4

Mould

0.5×2=1T

150×150

Set

2



5

Foot roll of mould

0.01×2=0.02T



Set

2



6

Mould  cover

0.1×2=0.2T



Set

2



7

Oscillator device

2×2=4T



Set

2



8

Secondary cooling spray tube

0.5×2=1T



Set

2



9

Secondary cooling guiding section rod

0.7×2=1.4T



Set

2



10

Secondary cooling vapor exhausting system

1.5T



Set

1



11

Withdrawal and straightening machine

5×2=10T



Set

2



12

Casting blank vibration prevention system

0.3×2=0.6T



Set

2



13

Dummy bar

0.9×2=1.8T

150×150

Set

2



14

Dummy bar storage device

0.7×2=1.4T



Set

2



15

Shears approach roller

2×2=4T



Set

2



16

Flame cutting machine

3T



Set

2



17

Automatic cut-to-length device

0.5T



Set

2



18

Travelling roller

2×2=4T



Set

2



19

Knockout roller

3.5T



Set

4



20

Steel transverse delivering machine

3.5T



Set

1



21

Hydraulic station system

2T



Set

1



22

Secondary cooling water breaker





Set

2



23

Cooling automation water  distribution plant

1T



Set

1



24.1

Control panel





Set

1



24.2

Field instrument





Set

1



24.3

Computer system





Set

1



25

Steel platform

60T





1
