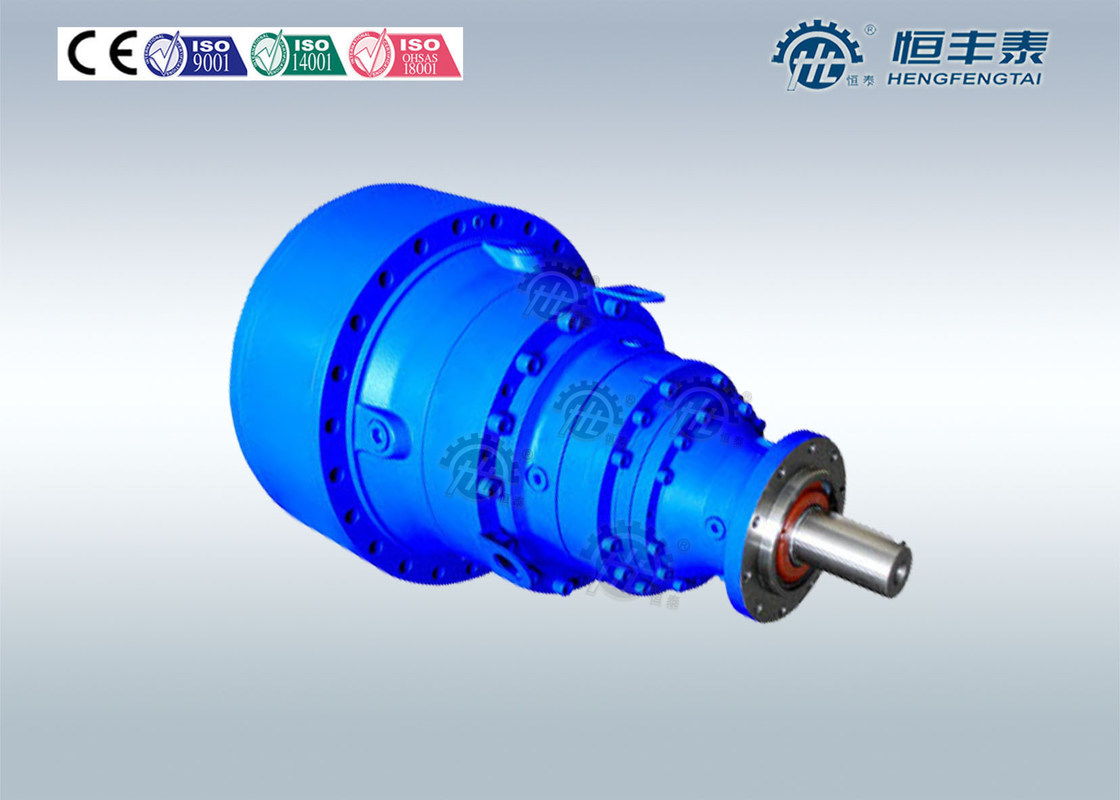

Conveyor Cast Iron Industrial Planetary Gearbox Gear Reducer , Solid Shaft Mounted

Conveyor Cast Iron Industrial Planetary Gearbox Gear Reducer , Solid Shaft Mounted
Conveyor Cast Iron Industrial Planetary Gearbox Gear Reducer , Solid Shaft Mounted

Large Image :  Conveyor Cast Iron Industrial Planetary Gearbox Gear Reducer , Solid Shaft Mounted

Product Details:
Place of Origin: Wenzhou City,Zhejiang,China
Brand Name: HT
Certification: CE,ISO9001:2008,ISO14001,GB28001
Model Number: HN series
Payment & Shipping Terms:
Minimum Order Quantity: FIVE PIECES
Price: PLS REFER TO PRICE TABLE
Packaging Details: 1 PCS PACKED IN ONE SMALL BOX, 7- 8 SMALL BOXES PACKED IN ONE WOODEN CRATE
Delivery Time: DEPENDS ON QUANTITY
Payment Terms: T/T or LC
Supply Ability: TWO THOUSAND PCS PER MONTH
Detailed Product Description
High Light:

planetary gear box

,

planetary reduction gear



Conveyor Industrial Planetary Gearbox Cast Iron , Solid Shaft Mounted





Quick Details:



Power range:0.4∼ 9551 KW



Ratio rang: I = 3.5∼15000



Torque rang: 450∼11205000 N.m



Input Speed: 750rpm – 1800 rpm



Output Speed: 0.1 rpm- 350 rpm



Mounting position: foot mounted,  hollow shaft mounted,  solid shaft mounted



Output shaft: hollow shaft , solid shaft



Gearcase housing: HT cast Iron Housing suitable for outdoor installation



       Backstop: Available on all frame sizes With/without anti-back Backstop









Descriptions:





With the HN Series Planetary Gear Reducer unit series, HENGTAI provides also standardized gear unit solutions for higher



power rating ranges in the proven HENGTAI quality. With 27 sizes and seven basic types the PLANUREX



series ensures torque ranges of up to 2,600,000 Nm and transmission ratios of 4,000:1.





The specific requirements to be taken into account for bucket wheel, slewing gear and travelling gear drives



in the field of materials handling have already been realized in standardized products. Get your benefit from



the advantages of a standard product available for your industry.







Products benefits:





  • Low weight and compact, place-saving design owing to a load sharing system



  • Saving operating expenses owing to high efficiencies and optimized maintenance intervals



  • Easy to combine with other gear units, e.g. primary helical, worm, bevel, or bevel-helical gear units



  • Low-noise running owing to low rolling and sliding speeds at the tooth flan





Storage:





1: Pls do not store in outdoor.



2: Pls put cardboard, wood or other material between the products and floor. the gear box cannot directly



   touch the floor.







WARRANTY:





HFT guarantees the products sold for one year from the date of delivery.



Warranty is limited to repair or replacement, free at our plant, of defective parts due to an ascertained



defect of material or manufacture. The parts replaced remain our property. All other compensation is



excluded, nor can any direct and/or indirect damage be claimed of any nature, also for the temporary lack



of use of the goods purchased.







Applications:





  • Roller presses



  • Slewing gear drives



  • Bucket wheel drives



  • Apron conveyor drives



  • Agitator drives



  • Travelling gear drives



  • Rotary kiln drives



  • Central drives for tube mills





Specifications:





Model: HN2B, HN2Y, HN2W, HN3B, HN3Y, HN3W



Sizes:9,10,11,12,13,14,16,17,18,19,20



Model

HN2B

9

10

11

12

13

14

16

17

18

19

20

Output Torque(Nm)

22000

31000

42000

60000

83000

117000

160000

202000

244000

295000

354000





THE CAUSE FOR BREAKDOWN AND SETTLEMENT OF REDUCER





Breakdown

Possible cause

The way of settlement

The motor does not run in case of loading

Voltage is too low

Check to see if the wire is too long or too thin

Gear is damaged

Repair it in special factory

Work with overload

Discharge load

Very hot

Work with overload

Discharge load

Start and stop too many

Discharge load

Bearing is damaged

Reduce using frequency

Voltage is too high or too low

Repair or replace

Loud noise

If the noise is loud and continuous, the bearing is damaged or the gear damaged

Repair it in special factory

If the noise is loud occasionally, the gear must be damaged or something else block

Contact with the service institution









































Competitive Advantage:





      1.  HFT total registered capital in RMB 58,000,000.We had 2 sub companies located in Binghai& Sanxi



      Industry Zone,  covering area 50000 square meters and 350 staff so far.







2.  As the leader in gear reducer domestically, we are committed to R&D all the time. There are more





than 40 professional technical engineers. We had 49 items patents including 7 items of invention





patent, 30 items of utility models, 1 item of appearance design, 2 items of international invention patent





and 5 items which are accepted by National SIPO wait for approval







3.   According to the globalization strategy, we have established pre-sale,after-sale and whole-process





selling network. Relying on high quality products and perfect service, our products have been





successfully applied by more than 5000 customers.
