High Frequency Induction Stress Relieving 1450º F For Weld Preheating

High Frequency Induction Stress Relieving 1450º F For Weld Preheating
High Frequency Induction Stress Relieving 1450º F For Weld Preheating High Frequency Induction Stress Relieving 1450º F For Weld Preheating High Frequency Induction Stress Relieving 1450º F For Weld Preheating High Frequency Induction Stress Relieving 1450º F For Weld Preheating

Large Image :  High Frequency Induction Stress Relieving 1450º F For Weld Preheating

Product Details:
Place of Origin: Shenzhen, China
Brand Name: Canroon
Certification: CE ISO9001:2008
Model Number: CR2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: FOB
Packaging Details: wooden case
Delivery Time: within 5 days if available in stock
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 500 sets per month
Detailed Product Description
Power: 40kw, 80kw, 120kw Frequency: 3-35kHZ
Temperature: Can Reach To 788 Applications: Stress Relieving, PWHT, Post Weld Heat Treatment
Industry: Offshore, Pipeline, Power Plant Pipe Material: Steel Pipe, Stainless Steel Pipe
High Light:

stress relieving heat treatment

,

heat treatment stress relieving

,

stress relieving heat treatment process



Induction Heating Stress Relieving Equipment for PWHT/Post Weld Heat Treatment






Brief introduction of our induction heating stress relieving equipment/PWHT post weld heat treatment machine:



our induction heating machine is made of high quality raw material with digital control, modular design, self fault feedback, and easy for operation, maintenance and repair. can be used for pipe stress relieving, PWHT, post weld heat treatment, applied in industries: offshore platform, oil and gas pipeline construction, power plant, etc



besides, our machine can also work very efficiently for pipe welding preheat, joint anti-corrosion coating.




Following is some of the working site:



induction heating machine can heat the whole part of flange, joint, with high efficiency, uniform heating, can heat both steel pipe and stainless steel pipes, and temperature recorder can show detailed temperature when working, and you can also print the PWHT curve for further research.



High Frequency Induction Stress Relieving 1450º F For Weld Preheating 0



High Frequency Induction Stress Relieving 1450º F For Weld Preheating 1



High Frequency Induction Stress Relieving 1450º F For Weld Preheating 2

High Frequency Induction Stress Relieving 1450º F For Weld Preheating 3

High Frequency Induction Stress Relieving 1450º F For Weld Preheating 4

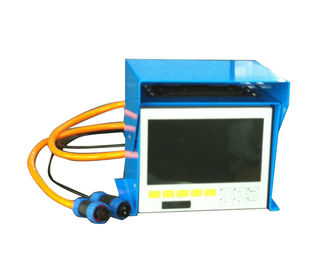

Picture of the high frequency induction heating stress relieving equipment / PWHT post weld heat treatment machine: with and without temperature recorder.

High Frequency Induction Stress Relieving 1450º F For Weld Preheating 5




Parameters of our induction heating stress relieving equipment for pipe post weld heat treatment/PWHT:



Model Temperature Input Power Input Output Dimension Weight
CR2000-040 788℃ 40KVA 3-phases
380V-460V
50-60Hz
50-61A
35KW
3-35KHz
Duty Cycle: 100%
H:762mm
W:544mm
L:730mm
115kg
CR2000-080 788℃ 80KVA 3-phases
380V-460V
50-60Hz
100-121A
72KW
2.3-35KHz
Duty Cycle: 100%
H:845mm
W:592mm
L:801mm
190kg
CR2000-120 788℃ 120KVA 3-phases
380V-460V
50-60Hz
150-181A
108KW
2.5-35KHz
Duty Cycle: 100%
H:845mm
W:592mm
L:801mm
190kg



Features of induction heating stress relieving equipment for pipe post weld heat treatment:



  • Friendly Interface and Accurate Control

The control board offers various parameters for setting so the heating process can be controlled precisely by giving value to temperature, time, heating rate, cooling rate, etc.

  • Various Control Mode

The interface offers two basic control mode to choose including temperature control and power control. The former one has 4 modes of preheatbake-outPWHTcustom. The last one has 2 modes ofconstant power and power VS time. Each mode offers different parameters to set. Thus brings the benefit of wide applicability and precise control.

  • Fault Record

Fault codes will display and be recorded for reference, and system will respond with protection action like shutdown once fault occurs such as open-loop output or short out.

  • Easy Maintenenace

Due to modular design, the maintance will be easy and low-cost.

  • Self Diagnosis

Once fault occurs, CR2000 will act with display of fault code, which was detailed explained in the manual book.

  • High Efficiency

This uniquely energy-efficient process converts up to 90% of the expended energy into useful heat, and time-to-temperature is faster than conventional processes due to the method of applying heat, reducing cycle time.

  • Uniform Heating

The heat is induced within the part itself by alternating electrical current, thus uniform temperature throughout the heating zone is realized.

  • Replaceable Heating Inductor

Apart from induction blanket (blanket type inductor), there are multiple heating inductors for choice including induction coil/cableC-type inductorplate type inductorSplit-core inductorO type inductor, all of which are easily dismountable and reconnected to the power source. So the power source can be used for heating workpiece of different size and shape.






Accessories of induction heating stress relieving equipment:

We offer multiple accessaries like thermocouple, thermocouple welding machine, digital temperature-recorder, remote switchgear, output extension cable, insulation blanket, etc. Complete solution saves your time and ensures you to start work soon after received our delivery.
