Steel Molding CCM Machine , Semi - Portal Continuous Casting Machine

Steel Molding CCM Machine , Semi - Portal Continuous Casting Machine
Steel Molding CCM Machine , Semi - Portal Continuous Casting Machine Steel Molding CCM Machine , Semi - Portal Continuous Casting Machine

Large Image :  Steel Molding CCM Machine , Semi - Portal Continuous Casting Machine

Product Details:
Place of Origin: Wuxi,China (Mainland)
Brand Name: HAIJUN
Model Number: R8M 3strands
Payment & Shipping Terms:
Minimum Order Quantity: 2 strands
Packaging Details: Container
Delivery Time: 2 months
Payment Terms: T/T,L/C
Supply Ability: 30 strands CCM per year
Detailed Product Description
High Light:

die casting equipment

,

continuous casting machines

Steel Molding CCM Machine , Semi - Portal Continuous Casting Machine





Quick Detail:



  1. steel molding machine
  2. radius: R8M
  3. Strand number: 3 strands
  4. with ISO certification
  5. advanced design
  6. safe operation



We can produce high quality continuous casting machines from 1 to 8 strands with the lowest equipment manufacturing cost.We can design, manufacture the up-to-date billet continuous casting machine in accordance with the user's steelmaking capacity, billet size, steel grades and the user's field conditions.





Description:



1. Basic standby technical parameters:



Steel billet casting machine radius

8m

Strand quantity

3 strands

Ladle support type

Ladle turret or Ladle car

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Gas and water cooling , 2 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Hydraulic or flame cutting machine

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed



2.  Technical process description and capacity of steel billet CCM



Induction furnace:

Nominal capacity

40T

Tap-to-tap cycle

60min

Furnace quantity

3sets



Production capacity

Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

400,000t/year



3.  Casting speed, productivity and strand quantity



    R8m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:

Casting sectional area(mm)

 180x180

200×200

220×220

Casting speed(m/min)

1.6

1.8

2.0



NO.

Billet

size

Casting speed

hourly output

(tons)

Daily output

20hour

(tons)

Annual output(300days)

(tons)

1

180×180

1.6m/min

21.98

439

131,700

2

200×200

1.8m/min

27.13

543

162,900

3

220×220

2.0m/min

36.47

729

218,700



    The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade

Casting grade(m/min)

Effective deformation rate(ε)

Allowable deformation rate(εmax)

Straight carbon steel

1.8~2.5

Please refer to the computational table

0.25

Low alloy steel

1.3~2.0

Please refer to the computational table

0.15~0.2

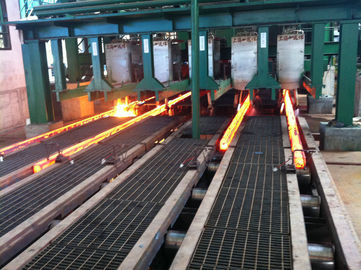

Steel Molding CCM Machine , Semi - Portal Continuous Casting Machine 0



4. CCM equipment parts list

Equipment name

Weight

Model and specification

Unit




   1

Ladle turret
Hydraulic drive,with weighting

21T

set

1





2

Tundish arriage
High and low leg type

12.5×2=25T

set

2





3

Tundish

6×2=12T

set

2





4

Slag Pot

2.5T

set

1





5

Long sleeve protection device

0.3T

set

1





5

Tundish baking

5.3×2=10.6T

set

2





6

Tundish nozzle
baking



set

2





7

Casting operation
boxes cantilever
rack



set

2





8

200×200 Mould



set

3





9

Mould cover



set

3





10

Oscillator device



set

3





11

Spray header



set

3





12

Oriented segment



set

3





13

Rigid dummy bar



set

3





14

Dummy bar storage device



set

3





15

Straightening and
withdrawal machine



set

3





16

Straightening and
withdrawal machine
common base



set

1





17

Shears approach roller



set

3





18

Billet clamping
device



set

3





19

Torch cutting
machine



set

3





20

Collection cutting
 head device and
 hanging pot



set

1





21

After cutting roller



set

3





22

Transport rollerⅠ



set

3





23

Transport rollerⅡ



set

3





24

Knockout roller



set

3





25

Fixed bezel



set

3





26

Shifting steel
 machine

6m length

set

3





27

Collection cooling
 bed



set

1





28

Caster body cooling
 system

include a backwash filter

set

1





29

Caster cover



set

1





30

Automatic Length
 System



set

3





31

Gas source processor

deal instrument gas

set

1





32

Steel platform





1





Hydrauli,Lubrication,pneumatic system











1

Host hydraulic station



set

1





2

The billet hydraulic station



set

1





3

Hydraulic lift tailgate



set

2





4

Centralized grease lubrication station



set

6





5

Hydraulic piping



set

1





6

Lubrication piping



set

1





CCM 3-Electric











1

Operating station











2

Software Package











3

PLC



set

3





4

ET-200 PLC
Host hydraulic station ET-200 PLC



set

1





5

Inverter











W-S machine inverter
(heavy type) power:11 kW



set

3





Shears approach roller inverter power:4KW



set

3





Steel Molding CCM Machine , Semi - Portal Continuous Casting Machine 1
