Product Details:
Payment & Shipping Terms:
|
Product Name: | Flat Gate Valve | Application: | Oil, Gas, Water, Steam Etc., |
---|---|---|---|
Size: | 4" ~ 42 " | Pressure: | CLASS 150 # , 300 # , 600# |
Standard: | API 6D / API 600 | Temperature: | -29~425 C |
Body: | Cast Steel / WCB / Stainless Steel | Seat: | Stainless Steel / 2Cr13 / Stellite Alloys |
High Light: | oil gate valve,water gate valve |

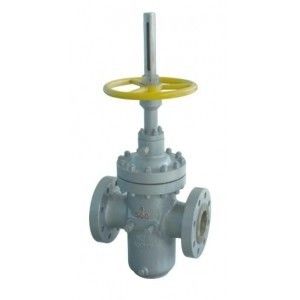

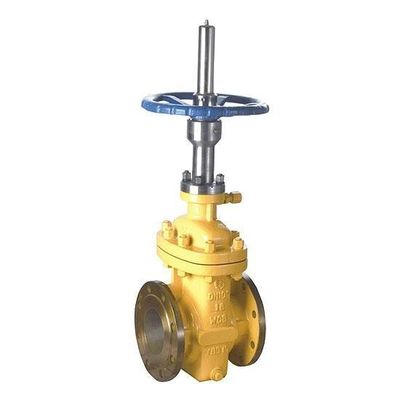

API 6D Slab Flat Cast Steel Gate Valve For Petroleum Natural Gas ( Through Conduit )
Applicable Standards: | |
DESIGN & MANUFACTURE CONFORM WITH: |
Materials of parts | ||
Body |
WCB/LCB/CF8M/CF8/CF3M/CF3/WC6/WC9/CD3MN WCB/LCB/CF8M/CF8/CF3M/CF3/WC6/WC9/CD3MN A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51 A105+ENP/LF2+ENP/F304/F316/F304L/F316L/F51 F6a/F304/F316/F304L/F316L/F51 PTFE/NYLON/PEEK/ 1~12 Trim material VITON/NBR B7M/B8M/L7M/B16M 2HM/8M/7M/4M 17-4PH/Inconel C95200/D2/A536 Flexible graphite+304/Flexible graphite+316 Flexible graphite/PTFE |
|
*Materials could be choosed according to customers' requirement & working condition. |
1 . Valve seat adopts the structure of O-ring seals and pretightening float valve seat, the soft
sealing inlays fluoroplastic, it provides the function of double sealing: fluoroplastic to metal and
metal to metal. And at the same time, the fluoroplastic can remove the dirt of the gate disk.
2 . Of the metal to metal sealing, there is a grease injection structure outside the valve, grease
injects the sealing part through the seat, in this way achieves the aim of zero leakage.
3 . Through conduit gate valve always coincide with the sealing surface,whether the disc is full
open-or fullclosd; sealing surface to be protected from scouring by media dilectly, thereby extending
the service life. In fulltime, smooth channel for the direct and flow resistance coefficient is extremely
small, no pressure loss, leading to Pig.
