Induction Metallurgical Equipment / Metallography Equipment

Induction Metallurgical Equipment / Metallography Equipment
Induction Metallurgical Equipment / Metallography Equipment

Large Image :  Induction Metallurgical Equipment / Metallography Equipment

Product Details:
Place of Origin: Wuxi,China (Mainland)
Brand Name: HAIJUN
Payment & Shipping Terms:
Minimum Order Quantity: 1 strand
Packaging Details: Container
Delivery Time: 1 month
Payment Terms: T/T,L/C
Supply Ability: 30 strands CCM per year
Detailed Product Description
High Light:

induction furnace melting

,

metallography equipments



Induction Metallurgical Equipment / Metallography Equipment

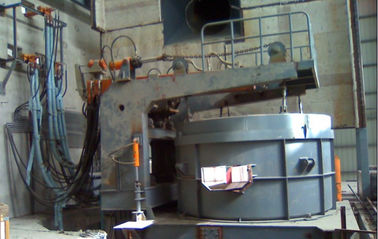

Electric arc furnaces are used for melting quality

carbon steel and alloy seel, their normal capacity 0.5t to 125t

Hydraulic station and control valves system





FEATURES

Ac (Alternating Current) High Power EAF is selected, which meets the needs of high quality, high yield, low consumption, and safety, as well as requirement of environmental protection, and automation during production process. The overall structure of the furnace body is link type, which includes separable furnace shell (top and bottom), pipe-type water-cooled panel and pipe-type water-cooled furnace cover, with eccentric bottom tapping (EBT), reserving the position of carbon-oxygen gun for electric furnace door
In furnaces,OP,HP and UHP power input modeis arc avaiable,both right and left operations for your choice.Roof swinging abd top charging. Aavanced designs of the furnaces operation reliable and performance excellent.





DESCRIPTIONS


·Furnace body
Tapping manners:spout and EBT. Tubular water-cooled and traditio
nat foof are available.


·Tilting mechanism


·Electrode lifting mechanism
It can be realized by bogie movelnent or mast lifting,common copper
tube arm or advanced water-cooled conducting arm are available.



·Roof lifting ami swinging mechanism.
integrated or separated foundation designs for your choice.


·Cooling-water monitoring and alarming system.


·Hydraulic station and control valves system.


·Electric control system:
Automatic regulatro of electrode lifting can be VVVF controlled or
computer  controlled. The later can  equipped with CRT displayer.
The actibf of all parts and interlocks is controlled by PLC



Model

Shell ID(mm)

Steel capacity(t)

Transformer

Rated KVA

Premier

Voltage (Kv)

Secondary

Voltage (Kv)

Electrode

Diameter(mm)

Electrode

Circle diameter(mm)

Cooling Water

Consumption (m/h)

Weight

(Ton)

0.5T

2100

0.5

320

6 10

200-98

Φ150

Φ450

8

5

1.5T

2500

1.5

1250

6 10

210-104

Φ200

Φ650

14

9

3T

3000

3

2200

6 10

220-110

Φ250

Φ750

15

24

5T

3400

5

3200

6 10

240-121

Φ300

Φ850

15

34

10T

3500

10

5000 8000

10

260-139

Φ350

Φ950

20

74

15T

3800

15

8000

10

260-139

Φ350

Φ1000

25

85

20T

4200

20

10000 12500

35

280-100

314-116

Φ400

Φ1050

25

98

30T

4600

30

12500 16000 25000

35 110

314-116

353-137

Φ450

Φ1150

53

178

40T

5000

40

20000 31500

35 110

392-158

489-201

Φ500

Φ1250

80

205

50T

5200

50

25000 31500

40000

35 110

436-183

547-223

Φ500

Φ1300

133

224

60T

5500

60

40000

50000

35 110

547-223

610-250

Φ550

Φ1350

150

252

75T

5800

75

50000

63000

35 110

610-250

473-277

Φ600

Φ1450

180

274

100T

6400

100

50000 63000 80000

35 110

473-277

760-310

Φ600

Φ1450

230

294

125T

6800

125

63000 80000

100000

35 110

760-310

880-330

Φ650

Φ1500

260

330
