Product Details:
Place of Origin: China
Brand Name: GY
Certification: CE, SGS , ROHS
Model Number: The saw blade welding tooth machine
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiation
Packaging Details: wooden box
Delivery Time: Depend on the order and destination
Payment Terms: TT
Supply Ability: 500set/month
Detailed Product Description
High Light:

induction heater for forging

,

induction heat treating Equipment

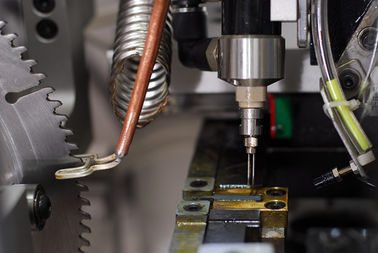

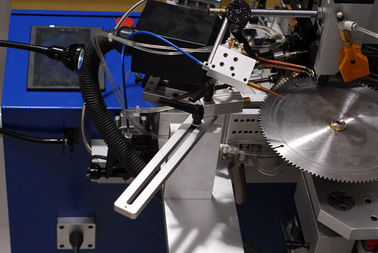

The saw blade welding tooth machine Induction Heat Treatment Equipment



Technical features

1. Automatic choose gear, feeding, wire feed welding process

2. Accurate, welding firm, stable quality

3. New gear selection system

4. Temperature to control to welding process can be fine-tuning and auto-tempering function, to adapt to a variety of special welding requirements

5. The whole process of computer control, which memory and query functions.

6. CNC control, safe and reliable

7. Advanced UHF heating controller, small size, low power consumption and high efficiency

8. Graphical user interface, clear concise, easy to grasp the operation of the program

9. Can be designed according to customers’ special requirements





Technical parameter



Saw blade OD

    80-500mm

Working power

       6KW

Tooth face angle

    -5°-+25°

Total power

       6.5KW

Tooth length

    3.5-13mm

Working pressure

      6KG/cm²

Tooth width

    1.5-6.5mm

Ventilated ability

     >5m³.min

Tooth thickness

    1.5-3.0mm

Cooling system power

      1.5KW

Welding ability

    18t/min

Cooling water flow rate

      22L/Min

Welding accurate

    ≤0.05mm

Product size

1200*960*1520mm

Power supply

    220V 50HZ

Net weight

      323KG





Operating Principle



Frequency conversion electromagnetic induction heating or induction heating for short is a method for heating metal materials by converting power frequency power supply into that of specific range based on the principle of electromagnetic induction. It is mainly applicable to the metal hot working, heat treatment, welding and melting. This type of heating technique is also applicable to packing industry (such as sealing of aluminum foil used in medicine and food industry), semiconductor material (such as extruded monocrystalline silicon and heated affixing metal parts for auto glass).

Basic components of induction heating system include induction coil, AC power source and work pieces. Induction coil can be fabricated into different shapes as per different heated objects. The coil is connected with the power source providing alternating current for coil. The alternating current possessed by the coil can create a alternating magnetic field passing through the work pieces to produce eddy flow as required by heating.

Electromagnetic Induction Heating Equipment Heat Treatment Machinery 0Electromagnetic Induction Heating Equipment Heat Treatment Machinery 1Electromagnetic Induction Heating Equipment Heat Treatment Machinery 2
