Assembled Eco Friendly Prefab Modular Green Homes For Works Camp

Assembled Eco Friendly Prefab Modular Green Homes For  Works Camp
Assembled Eco Friendly Prefab Modular Green Homes For  Works Camp

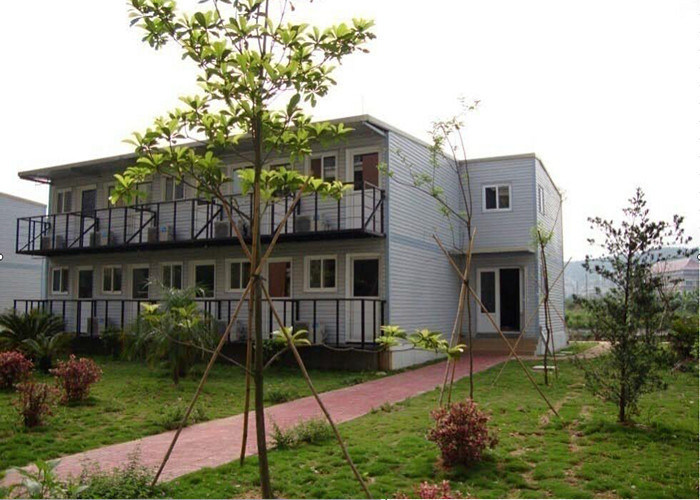

Large Image :  Assembled Eco Friendly Prefab Modular Green Homes For Works Camp

Product Details:
Place of Origin: Yangzhou,Jiangsu,China
Model Number: Custom-made
Payment & Shipping Terms:
Minimum Order Quantity: 4 units
Price: negotiable
Packaging Details: Flat Packing
Delivery Time: 1 month
Payment Terms: T/T or LC
Supply Ability: 200 units per month
Detailed Product Description
Structure: Galvanized Steel Frame Wall And Roof: PU, Rock Wool Or Neopor EPS Sandwich Panel
Window: Aluminum Or PVC Frame With Clear Glass Door: Steel Cleanroom Door
Floor: Vinyl Sheet On Plywood Or Cement Board Fire Proof: B1 Grade
High Light:

eco friendly prefab homes

,

modern contemporary modular homes





Green Standard Prefabricated Modular Houmes Galvanized Steel Structure Sandwich Panel





Description



Structure: Galvanized Steel Frame with Marine Paint

Wall and Roof: PU, Rock Wool or Neopor EPS Sandwich Panel

Window: Aluminum or PVC Frame with Clear Glass

Door: Steel Cleanroom Door

Floor: Vinyl Sheet on Plywood or Cement Board

Fire Proof: B1 Grade

Lifespan: 8-10 Years



This product is on the basic of 20 feet container. With the modern design and advanced technical skills which made itelegant and comfortable. It  has a good insulation which was made by Neopor (It is made in Germany BSF). The strong firm structure was made by galvanized steel frame, so the life time will be more than 8-10 years.





Application



Flat-packed container house is one of our popular products. It is widely used for office, accommodation, hotel, hospital, commercial kiosk, parlor, bedroom, study room, locker room, ablution room, school, shower room, kitchen, dining room, works camp, exhibition, dormitory, villa, carport, house, coffee room, booth, sentry box, guard house, shop, toilet, warehouse, workshop, plant and so on.





Specification



Dimension(mm)&Weight(kg)



Type

External

Internal

Weight (kg)

Length

Width

Height (package)

Height (assembled)

Length

Width

Height

20’

6055

2435

648/864

2591/2790

5860

2240

2500

from 1850















Floor

Steel frame

- made from cold rolled, welded steel profiles, 4 mm thick

- 4 corner casts, welded

- 2 fork lift pockets (except 30’) - distance 1200mm

(internal clearance of fork lift pockets: 240×80 mm)

- steel cross members, thickness=2mm

Insulation

- 100 mm thick Rock Wool

Subfloor

- 0.5mm thick, galvanized steel sheet

Floor

- 18mm plywood board

-         1.8mm PVC floor

-         flammability class B1 - hardly combustible

-         smoke density class Q1 - low smoke emission

-         wear resistance factor: T level































Roof

Steel frame

- made from cold rolled, welded steel profiles, 3mm thick

- 4 corner casts, welded

- steel cross members, thickness=2mm

Roof cover

- 0.5mm thick, galvanized steel sheet

- 360 degree seaming at joint of roof panels

Insulation

- 100 mm thick Rock Wool

Ceiling

- 10 mm chipboard (V 20), laminated on both sides, white

- the chipboard complies with the emission value E1

CEE connector

- sunken in frame on short end side























Insulation

Rockwool

- density:120kg/m3

- flammability class A- non combustible

- smoke density class Q1 - low smoke emission

- certificated: CE & GL

NeoporR

- density:18kg/m3

- flammability class B1- non combustible

- smoke density class Q1 - low smoke emission

- certificated: CE & GL





















Coatings (Optional)

DecoCoating

Special coating can be applied on top of sandwich wall panel and make the external wall surface looks like plastering finishes or timber finishes. That makes the container house cozy and less industry look.















Assembly Process



Easy to be Assemble and disassemble. Four workers can complete one unit in half day.





Packing and Transportation



From our factory to overseas client, there are two ways to delivery the houses. If your

port can accept SOC (Shipper’s Owned Container), 4 standard cabins can be packed as

a 20ft container and shipped naked. If can not, 7standard cabins can be loaded into one

40ft HC.

From the dealer’s workshop to the client’s place, it can be delivered by 6m long truck

after assembly. The width and height are within traffic limitation.





Competitive Advantages



We could provide deisgn, manufacture, logistic and on-site instruction services. We are specialist on prefabricated house elements, such as Sandwich Panel, Steel Structure, and Metal Cladding.

1

Strong Structure



All parts are galvanized, lifetime more than 30 years. Can be stacked up to 3 floors.

2

Modular Design



They are able to stack each other and fixed through high tensile screws.

3

Factory Quick Respond



Modular design minimized and standardized part. That makes quick combination and respond possible.

4

Minimized Site Work

The assembly only requests simple tools. That helps to save equipment cost and labor cost. No cast-in-situ concrete slab is needed. The original floor such as turf will not be damaged.
