1 / 2 Strand Casting Slabs R6m , R8m , R10m Ladle Turret

Certification
China China Casting Machine Online Market certification
China China Casting Machine Online Market certification
Customer Reviews
I want to say that your products very good. Thank you for all your suggestion, also good after sales service.

—— Mr Abílio Cipriano

Easy to talk with, very professional and fast service, the flag quality is super good. Even better than we ordered from Germany!!

—— Germany Fabian Scherb

I'm Online Chat Now

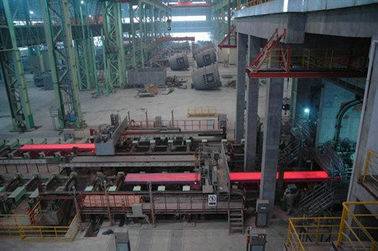

1 / 2 Strand Casting Slabs R6m , R8m , R10m Ladle Turret

1 / 2 Strand Casting Slabs R6m , R8m , R10m Ladle Turret
1 / 2 Strand Casting Slabs R6m , R8m , R10m Ladle Turret

Large Image :  1 / 2 Strand Casting Slabs R6m , R8m , R10m Ladle Turret

Product Details:
Place of Origin: Wuxi,China (Mainland)
Brand Name: HAIJUN
Model Number: R6M,R8,R10
Product size: 140×1000 ~ 200×1400
Annual production: 50,0000 ~ 1,000,000Ton
Payment & Shipping Terms:
Minimum Order Quantity: 3 strands
Packaging Details: Container
Delivery Time: 10 months
Payment Terms: T/T,L/C
Supply Ability: 3 strands CCM per year
Detailed Product Description
High Light:

steel continuous casting

,

steel continuous casting machine



1 / 2 Strand Casting Slabs R6m , R8m , R10m Ladle Turret



Quick Detail:

radius: R6M, R8M, R10M

Strand number :1 / 2 strands

advanced design

safe operation

Low energy and high efficiency



We can produce high quality continuous casting machines from 1 to 8 strands with the lowest equipment manufacturing cost.We can design, manufacture the up-to-date billet continuous casting machine in accordance with the user's steelmaking capacity, billet size, steel grades and the user's field conditions.





Description:



1. Basic standby technical parameters:



Steel billet casting machine radius

6m,8m,10m

Strand quantity

1,2 strands

Ladle support type

Ladle turret

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, closed casting

Secondary cooling

Aerosol cooling , 3 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Flexible chain dummy bar

Billet cutting

Hydraulic or flame cutting machine

Billet conveying

Group centralized live roller table

Cooling bank type

Step cooling bed



2.  Technical process description and capacity of steel billet CCM



Induction furnace:

Nominal capacity

70T

Tap-to-tap cycle

60min

Furnace quantity

1set



Production capacity

Working days

330 days/year

Average number of daily furnace

24/day

Annual production:

50,0000 ~ 1,000,000Ton





3.  Casting speed, productivity and strand quantity



    The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade

Casting grade(m/min)

Effective deformation rate(ε)

Allowable deformation rate(εmax)

Straight carbon steel

0.8~1.8

Please refer to the computational table

0.25

Low alloy steel

0.8~1.65

Please refer to the computational table

0.15~0.2



4. CCM equipment parts list



No.

Equipment name

Weight

Type

unit

Quantity




Equipment body











1


Ladle turret

107T

Signer arm load 100T, with cover, with lifting device

set

1



2

Steel water weighing system





set

2



3

Rotary arm lift hydraulic system

4T


Withpreparation of power

set

1



4

Protection tube device

1T



set

1



5

Rotary accident tank

2T



set

1



6


Tundish car

18×2=36T


With lifting

set

2



7


Tundish

4.5×2=9T


Institutions with Stopper

pcs

2



8


Tundish baking device

4.5×2=9T


Hydraulic flip

set

2



9

Protection tube

0.35



set

1



10

Tundish cover

4.8T


Heat-resistant cast iron

set

2



11

Tundish open cast-on system





set

5



12

Stopper Control System





set

2



13

Accident flow slag  tank

1.2T



pcs

2



14


Mould

11×3=33T

140×1000
~200×1400
Adjustable

set

3



15

Vibration device

24×2=48T


Quick change type

set

2



16


Secondary cooling 0 section

12×2=24T


Wear-resistant hardfacing

set

2



17


Secondary cooling sector section

16×2=32T


Wear-resistant hardfacing

set

2



18

Sector straightening and withdrawal section

23×8=184T


Wear-resistant hardfacing

set

8



19

Secondary cooling sector base

64×2=128T



set

2



20

Quick guide

32T


left and right Symmetrical

set

1



21

Straightening and withdrawal drive device

1.8×4=7.2T



set

4



22

Aerosol spray device

6×2=12T



set

12



23

Take Off the dummy bar device

1×2=2T



set

1



24

Flexible dummy bar

13T

 42Cr
 42Cr Forged

set

1



25

Flame cutterⅠ

13T



 set

1



26

Hydrogen and oxygen generator





set

2



27

Traverse roller

26T



set

1



28

Dummy bar storage device

30T



set

1



29

Roller table

37×1.5=55T



set

37



30

Flame cutter Ⅱ

6T



set

1



31

Hydrogen and oxygen generator





set

1



32

Steel delivering machine

22T



set

1



33

Straightening and withdrawal hydraulic station

10T



set

1



34

Straightening and withdrawal hydraulic cylinder





set

10



35

Mould water distribution system





set

1



36

0 section r water distribution system





set

1



37

Ⅰsection water distribution system





set

1



38

Ⅱsection water distribution system





set

1



39

Straightening and withdrawal Ⅰsection water distribution system





set

1



40

Straightening and withdrawal Ⅱsection water distribution system





set

1



41

Turret lubrication system





set

1



42

Tundish lubrication system





set

1



43

Vibration lubrication system





set

1



44

Secondary cooling 0~Ⅱsection
lubrication system





set

3



45

Straightening and withdrawal lubrication system





set

4



46

Roller lubrication system





set

4



47

Steel delivering machine





set

1



48

Gas source and treatment system











Gas source and treatment system







1

Air compressor for aerosol cooling

12×3=36T

60M/min

set

3



2

Gas bag

6×2=12T



set

2



3

Compressed air piping in workshop

9T



set





4

Instrument air compressor

2.3×2=4.6T



set

2



5

Gas source and treatment system

8T



set

1



6

Gas bag

1.5T



set

1



7

Valve and piping





set





Water treatment systems









1

Canadian pharmacy equipment











2

Mechanical filter











3

First sedimentation tank equipment











4

Dosing pump











5

Medicine cabinet with stirring











6

30 t oil-water separator











7

Inclined plate sedimentation tank (secondary)

7.0×5.0×7.5m



set

5



8

Piping parts and water pumps











9

90°Elbow





pcs

114



10

Rigid waterproof case





         piece

34



11

Water cooling town







4



12

Various types of valves











13

Water treatment control equipment













1 / 2 Strand Casting Slabs R6m , R8m , R10m Ladle Turret 0
