Product Details:
Payment & Shipping Terms:
|
| Gearing Arrangement: | Helical | Output Torque (N.M): | 7.57kN~433.2kN |
|---|---|---|---|
| Output Speed: | 83.5rpm~483.9rpm | Input Speed:: | 600r/min~1500r/min |
| Color: | As Request | Gear & Shaft Material: | Low Carbon High Alloy Steel |
| Export Market: | Global | Rated Power: | 67KW~10800KW |
| Warranty: | One Year | Purpose: | Industrial Gearbox |
| High Light: | industrial speed reducer,parallel shaft gearbox |
||

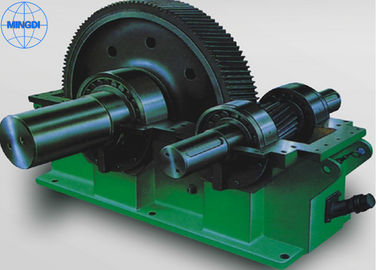

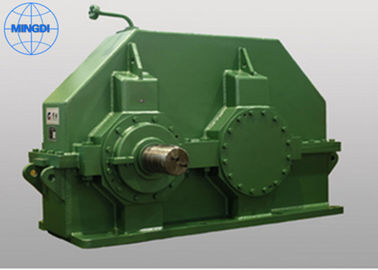

67~10800KW JDX Series Industrial Gearbox / Gear Transmission for Milling Machine
Specifications:
Single-stage parallel shaft transmission type.
Widly used in the fields of cement, metallurgy, petroleum
and light industria
Description:
1. Characteristics
A. The gear and gear shaft employs high-strength low-carbon alloy steel, with manufacturing method of
gear hobbing, the thermal treatment of carburising & quenching, as well as gear grinding,
the hardness of gear flank can be HRC58-62, which is high precision and good contact.
B. Compact, light weight, durable lifetime, large carrying capacity.
C. High transmission efficiency, stable transmission, low noise.
D. Easy to dismantle, repair and install.
E. Range of speed ratio: 3.15-7.1
Distance between input shaft and output shaft is from 280 to 1000.
Widely used in the fields of cement metallurgy petroleum and varied kinds of light industrial machinery.
Case hardened and finishes ground to the gear and pinion shaft.
|
JDX series industrial gearbox |
Ratio |
Input speed/rpm |
Rated power/kw |
|
|
3.15~7.1 |
600~1500 |
67~10800 |
2. Product Brief Induction
JDX series gear reducer is specially for cement industry. Its feature is high input power, high output torque and low speed.
|
Item |
Gearbox JDX Series |
|
Model |
JDX28, JDX36, JDX45, JDX56, JDX63, JDX71, JDX80, JDX90, JDX100 |
|
Power |
120 - 7600 KW |
|
Speed Ratio (i) |
3.15 - 7.1 |
|
Feature |
Single-stage parallel shaft transmission type, heavy load low spee (peripheral speed ≤20m/s), cycle reversible, safe and reliable, long life-span |
|
Application |
JDX speed reducers are widely used in the fields of cement, coal and metallurgy industry |
3. Company Profile
Changzhou Mingdi Machinery Co., Ltd. Has started its own gearbox business since 2002, we attach importance to the research and development of new product. We offer big range of gearboxes, including cylindrical hard-tooth--face gearbox, P planetary gearbox, RV worm gearbox, ZLYJ plastic extruder gearbox,
customized gearbox & gear etc, with a strong advantage on cylindrical hard-tooth-face gearbox and
customized gearbox, we follow strict qualitycontrol system from the start to end.
Our mission is to design and offer the reliable solution to your gearbox need, and to promote sustainable and shared development with customers by providing honest, responsible, prompt services.
Applications:
Applicable for the industries such as metallurgy, mine, chemical industry, construction materials, hoisting, transportation, textile, paper marking, food, plastic, rubber, engineering machinery, and energy industry.
Our Services
Client satisfaction is our key business principle, as is consistent service. We offer a personalised and hands-on service to our clients. We will work closely with them to ensure that they receive superior outcomes. Whether they are in need of a simple gearbox exchange or a complicated customized gearbox, we have the bespoke service available. All of our products and services are cost-effective and we guarantee that our clients will receive a long-lasting solution and get great value for money. Also, all gearboxes have 12 to 18 months warranty.
