Product Details:
Payment & Shipping Terms:
|
Model: | KSF-100L | Refrigerant: | R134a |
---|---|---|---|
High Light: | packaged chiller unit,air cooled packaged chiller |

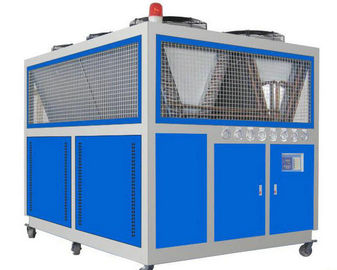

R134a Refrigerant Air-Cooled Screw Chiller used In factory ,ScrewType Industrial
Quick Detail:
1. Adopting Germany Aerzen air end or Germany Denair air end.
2. Denair air compressor adopts Germany MANN FILTER ,its filtering precision is between 10μ-15μ.
3. VSD/VFD type available,ABB converter for your choice
4. Adopting famous brand of components like SKF bearing,Danfoss pressure sensor,French Schneider control system.
Description:
1- KASSEL air cooled chiller use shell & tube heat exchanger
Dry type & tube heat exchanger with inner grooved copper tube optimizes the cooling & heating efficiency. Self-cleaning, high intensity, anti-shaking design and heat insulation covering material ensure shell & tube heat exchanger unstained, reliable, quiet, highly efficient.
2- KASSEL air cooled chiller equipped with complete protection
Water shortage protection, high/low voltage protection, anti-freezing protection, overload protection, overheat protection and oil level protection ensure high reliability and stability.
3- KASSEL air cooled chiller use high efficiency semi-hermetic screw compressor.
It can realize 4 steps or steppes capacity control. The unique squirrel cage compressor motor started up by Y type can decrease start current by 33%, automatically cooled by the refrigerant.
4- KASSEL air cooled chiller use high efficiency air side heat exchanger
Unique M-shaped design, inner grooved & patent sawtooth design and hydrophilic aluminum fin guarantee efficient heat exchange between the air side exchanger and ambient air.
Specifications:
Model KSF |
100L |
||
Refrigeration Capacity |
KW |
272.5 |
|
Kcal/H(*10^4) |
23.4 |
||
Compressor |
Quantity |
1 |
|
Power(KW) |
73 |
||
Refrigeration |
R134a |
||
Refrigeration Doses |
80 |
||
Condenser |
Fan Input Power |
7.2 |
|
Fan Delivery(M³/H) |
113000 |
||
Evaporator |
In&Outlet Temper |
12/7 |
|
Water Resistance |
<=60 |
||
Water Flow(M³/H) |
57 |
||
Diameter |
DN80 |
||
Heat Recovery |
Heat At 7 When |
7.3 |
|
Circulating Water |
30-52℃ |
Competitive Advantage:
