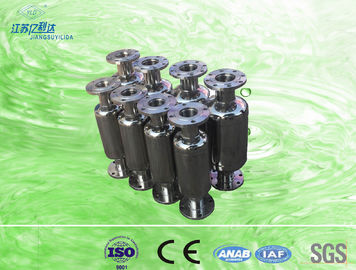

Magnetic Water Treatment Devices Water Descaling machine with SS316 Housing

Magnetic Water Treatment Devices Water Descaling machine with SS316 Housing
Magnetic Water Treatment Devices Water Descaling machine with SS316 Housing

Large Image :  Magnetic Water Treatment Devices Water Descaling machine with SS316 Housing

Product Details:
Place of Origin: China
Brand Name: YLD
Certification: CE/ SGS
Model Number: YLC-2.5
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed with EPE, and then with plywood case for outer packing
Delivery Time: 10 working days after received your payment
Payment Terms: T/T or western Union or L/C
Supply Ability: 500 units per month
Detailed Product Description
Product Name: Magnetic Water Treatment Application: Agricultural Irrigation
Inlet & Outlet Diameter: 2.5 Inch Flow Rate: 28 M3/Hr
Material: SS 304/316/316L Connection Mode: Flange,BSP Thread
Working Temperature: 0~90 ℃ Magnetic Intensity: 5000 Gauss,10000 Gauss,15000 Gauss
High Light:

magnetic water softeners

,

magnetic water treatment

SS316 Material 3 inch  Magnetic Water Softener For Cooling Towers



Working principle:

Permanent NdFeB magnet material, full of tremendous energies, can form a vertical centering magnetic field with multiple wave crests. When flowing through vertical magnetic field, water or fluid will generate electromotive force, which can make lattice finer—i.e. scale lattice size will change from 339pm to 0.22pm. The faster the flow is, the stronger the electromotive force will be and the better the treatment result will be. Thus, the purpose of scale prevention and removal will be obtained.

At the same time, affected by magnetic field, water flow makes electrical conductivity and osmotic pressure changed, make cells of microorganisms ruptured, and make cells stop reproducing, so that the growth of bacteria and algae can be inhibited.

Affected by magnetic field, water flow will generate a small election current to promote Fe203.nH2O transforming into Fe304 which is with stable property. Then, black magnetic iron oxide will be generated and settled on the surface of pipe wall, which will later form a blocked film layer As a result, oxygen will be separated from pipe wall, so that the purpose of rust removal and prevention can be obtained.



Specifications: (The practical dimension could be customized )



Model

                Inlet and outlet

Dimension(mm)

Flow rate

Vertical center

Working medium

weight



mm

inch

diameter*length

m3/h

strong magnetism (mt)

temperature (℃)

Kg

YLC-1

25

1

108×300

4.9

160

0-90

10

YLC-1.5

40

1.5

108×330

12

160

0-90

20

YLC-2

50

2

159×400

19

160

0-90

30

YLC-2.5

65

2.5

159×450

28

160

0-90

40

YLC-3

80

3

159×450

50

160

0-90

45

YLC-4

100

4

219×560

80

160

0-90

50

YLC-5

125

5

219×600

125

160

0-90

60

YLC-6

150

6

273×740

180

160

0-90

70

YLC-8

200

8

325×790

320

160

0-90

90

YLC-10

250

10

377×850

480

160

0-90

110

YLC-12

300

12

426×800

600

160

0-90

130

YLC-14

350

14

478×950

750

160

0-90

160

YLC-16

400

16

530×1000

850

160

0-90

210

YLC-18

450

18

630×1050

950

160

0-90

260

YLC-20

500

20

720×1100

1100

160

0-90

330





Applications:



Plastics industry

The buildup of sludge can be prevented in the cooling circuits of the machines and the tools. Cooling and heating systems equipped with our technology are largely maintenance free, thus assuring the highest productivity and availability and leading to lower overall production costs as well.

Housing and real estate

Can be used to cut down heating, cooling and maintenance expenses significantly. By using our chemical-free technology, layers and deposits in all HVAC and plumbing systems can be minimised with a lasting effect. This helps to protect the whole installation against damages and failures as well as against the efficiency losses that are the most common causes for increased consumption of energy and water over the course of the system’s life cycle. In old buildings, the gradual cleaning of the heat exchangers, valves and radiators typically translates into substantial energy savings thanks to the recovery and restoration of the system efficiency.

Transport and traffic

In shipping our technology is used e.g. for fresh-water supply to counteract limescale in pipes and the high maintenance costs resulting from it. A Scandinavian ice-breaker fleet, among others, has been using our technology for a long time with great success.

Hotels and Restaurants

The whole piping system of the drinking water and/or hot-water in hotels and restaurants supply together with all of its components and critical appliances can be protected against limescale deposits and rust with the help of the chemical-free water magnetic treatment. Being completely maintenance-free after the initial installation, the Bauer pipe jet device ensures cost-optimised operation while providing thorough and continuous protection against corrosion and potentially costly leakages and water damages. With a suitable filter system, the technology can also be used to protect the HVAC systems such as cooling and heating circuits. Additionally, the Bauer pipejet device looks after the efficiency of the system by keeping the heat exchangers and transfer surfaces as well as the water itself in pristine condition.

Cooling Towers

Air conditioning systems in shopping malls and office buildings are a must nowadays.

With the help of an appropriate filtering system, maintains the water in the cooling circuits in crystal clear condition and the piping, heat exchangers and other equipment free of deposits and layers.

Thanks to the layer-free surfaces in the equipment, a better performance of the complete system can be achieved with reduced need for maintenance and lower water and energy consumption.

Agricultural irrigation

In controlled large-scale field experiment it was found that magnetic treatment affects the quality of irrigation water. Treated water contributes to an increase in crop yield, both in quality and quantity.

The level of return in individual farms depends on three key factors: the tyoe of equipment, the water quality, and the mode of operation of the apparatus.

Agricultural use is not limited to farming alone but also can be implemented for golf courses, greenhouse irrigation and many other horticultural venues.

Benefits: Increased root growth

          soil hold moisture longer

          water conservation equals less man hours

          less energy required to pump and irrigate

          increased fertilizer efficiency,less chemical cost

          de-scaling of piping

          unclogged water jets

          bigger crop yield



advantages of magentic water descaler in agricultural water;



The very strong and intense magnetic field within the water magnetizer

(water magnets) causes the water molecules to change.

  The magnetic field interferes with the ionic charges of the mineral ions (salts) in the water, which makes them not behave like the same salts any more.

  This change results in the water acting “softer”. The minerals contained in the water lose their ability to bond (bond ironically).

  Calcium and magnesium no longer set like cement, and sodium (and other elements and salts) lose their ability to bind to the soil particles..

It integrated many advantages that other equipment lacks of: better effect of descaling and pre-treatment desalination.therefore,many customer will choose it for outdoors working in irrigation water.especially the buyers from hot and dry climate area or countries.





FAQ:



01. What is the capacity(m3/hour)you required for this equipment?

or you could confirm diameter of the water pipe.

02. What is the material for this descaling equipment?

Ordinary carbon steel is Okay? stainless steel(SS304/SS316)?

Which means,what is the source of raw water to be treated?

03. What is the magnet power for it?

ordinary 5000 gauss?or higher?





Functions of water processor





Magnetic Water Treatment Devices Water Descaling machine with SS316 Housing 0





Products show:



Magnetic Water Treatment Devices Water Descaling machine with SS316 Housing 1
