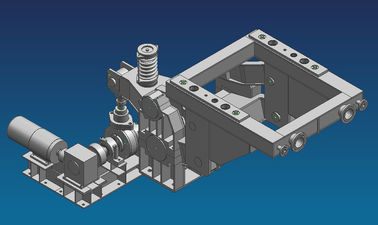

Continuous Casting Machine Parts , Spring Type Mold Oscillator

Continuous Casting Machine Parts , Spring Type Mold Oscillator

   Main technical parameters:

    Driving mode:                             VVVF

    Amplitude range:                        ±2～±9mm

    Frequency:                                 30~250 times/min

    Oscillation mode:                       Sine

    Amplitude adjustment:                Shutdown regulation

    Frequency regulation:                 Automatic adjustment according to casting speed

 For preventing initial solidified shell from been broken due to its sticking to mold wall.

 Structure: Semi-leaf spring type

This equipemt consists of upper and lower guide leaf springs, eccentric oscillation mechanism, oscillating table frame, medium pipeline, etc.

   The oscillator has a converse oscillating characteristic, that is, in order to maintain a certain negative strip rate, the oscillating frequency can be reduced to increase the oscillating stroke, when speeding up the continuous casting speed.
