ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4

China ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4 supplier
ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4 supplier ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4 supplier

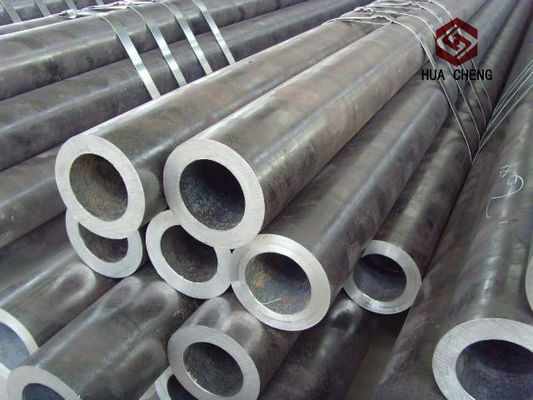

Large Image :  ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4

Product Details:

Place of Origin: Jiangsu China (Mainland)
Brand Name: JIANGSU HUACHENG
Certification: ISO9001 14001 BV TUV PED DNV etc
Model Number: HC

Payment & Shipping Terms:

Minimum Order Quantity: 5MT
Packaging Details: Exporting package/wooden box package/Or per customers’ requirement
Delivery Time: 25~35days
Payment Terms: 30%T/T in advance or 100% L/C at sight
Supply Ability: 8000MT/Month
Contact Now
Detailed Product Description
Features: Thin Wall Application: Oil, Gas, Fluid, Construction, Chemical, Petroleum, Traffic
Certificate: PED, BV, ISO, TUV Ends: Bevel, Plain
Material: A53, A106 Grade B, Q235, Q345, 34CrMo4, A106 Grade C Product Name: Hot Rolled Steel Tube, Seamless Steel Tubes
Section Shape: Round Standard: ASTM, DIN, EN, SAE, JIS, GOST
Surface Treatment: Varnish, Bare, Varnished Technique: Hot Rolled, Seamless, Cold Rolled

 ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4



Quick Detail:



Standard: ASTM / DIN / EN / GOST / SAE / JIS etc

Process method: Hot rolled/ Hot expansion/ Cold drawn

Size: (mm)

O.D : 60.3mm-914.4mm

W.T : 3.91mm-59.54mm

Length: 5-12m as per customer's requirements

Material: A53, A106 Grade B, A106 Grade C, Q235, Q345, ASTM A519 37Mn, 34CrMo4.

(10, 20, 30, 35, 45,16Mn, 5MnV, 40Cr, 30CrMnSi, 45Mn2, 40MnB, etc)





Description:



(1) Product Name : Hot Rolled / Hot expansion Seamless Carbon Steel Pipe
(2) Brand : Jiangsu HuaCheng

(3) Specification: O.D : 60.3mm-914.4mm  W.T : 3.91mm-59.54mm
(4) Standard :

ASTM A106-B ASTM A53-B API 5L-B

API 5L, X42, X52,  and 5CT ,J55 ,K55
SAE1020 ,SAE1045
JIS G4051, S20C ,S45C, JIS G3454, JIS 3454 ,STPG42
DIN 17175 ST 45-8, ST 52
(5) Tolerance: OD :+1% / -1%  WT: +12.5% / -10%
(6) Technics : hot rolled .or cold rolled
(7) Package: bundles,seaworthy wooden cases,container

(8) Ends:bevel or plain

(9) Coating: Internally bare, externally varnished





Specifications:



Production process of hot rolled tubes :
Hot rolling → heating → piercing → three roller helical rolling, tandem rolling or extrusion → tube knockout → sizing or tube diameter reduction → cooling → semi-finished hot rolled seamless pipe → straightening → water pressure test → labeling → warehousing.

Classifications :
Hot rolled seamless steel tubes can be classified into the common steel pipe, low and medium pressure boiler seamless steel tube, high pressure boiler seamless pipe, stainless steel hot rolled pipe, and more.

Advantages :
Due to our adoption of hot rolling process, the original casting structure of the steel slab for making hot rolled pipe is destroyed. This means that the crystalline grains of steel material are refined, and the defects of the microstructure of steel slab are eliminated, which results in improved mechanical performance and denser microstructure of steel materials along the rolling direction.
Hence, our hot rolled seamless steel pipe features good mechanical property and superior intensity.





Regular Hot Rolled Pipe Sizes:



(Or per customers’ requirements)



OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

OD × WT (mm)

12×1.5

133 ×4~12

406.4×6~25

73×4-4.5-5-6-7-8-9-10-12-15

219×30-40

14×1.5-2.5-3

141.3×4~12

426 ×6~25

76×4-4.5-5-6-7-8-9-10-12-14

245×8-10-14-17-20-22

16×1.5-2.5-4

159 ×4~12

457 ×6~38

83×4.5-5-10/ 12 14 16 18 20

245×25-28-30-34-40

18×2.3-4-5

165 ×4~20

508 ×6~38

89×4.5-8-10/12-14 16 -18 20

273×7-9-12-15-18-20-25

20×2.5-3-5

168.3×4~20

530 ×6~40

95×4.5-6-8/10-12-14-16-20

273×30-35-38-40

24×2.5-3-4-5-6

177.8×4~22

559 ×6~40

102×4.5-5-6-7-8-10-12-14-16-20

299×8-12-16-20-24-28

25×2.5-3-4-5-6

323.8×6~25

610 ×6~40

108×4.5-5-6-7-8-10/12-14-18-20-22

299×30-32-36-38-40

28×3-3.5-4-5-6

340 ×6~25

630 ×6~40

114×4.5-5-6-7-8-10-12-14-18-20

325×8-12-14-18-38

32×3.5-4-5-6-8

355.6×6~25

>630×6~44

121×4.5-5-6-7-8-10-12-14-16-20

325×28-32-34-38

34×4-5-6-8

377 ×6~25

<914×6~60

127×4.5-5-6-7-8-10-12-14-16-20

351×10-16-20-25-40





Applications:



Transportation of oil,gas or fluid,Construction,Electricity,Machine building industy,Chemical industy,Petroleum,Traffic, etc





Competitive Advantage:



Huacheng Pipe Making Company is one of the largest seamless steel pipe manufacturers in China.We’ve passed API 5L,API 5CT, PED, BV, TUV certification and ISO quality system certification.With good quality and competitive price, we believe we could be your reliable supplier.





Factroy Pictures:

ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4



Pipe & Tube Processing

ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4

Factory Equipments:

ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4



Production Line:

ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4

Quality Control:



ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4



Steel Pipe & Tube Application:

ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4

Package:

Export Standard / Wooden Box

ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4

Main Certificates:

PED ISO BV TUV etc.

ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4

Main Customers:



ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4ASTM A106B A53B API 5L B Thin Wall Hot Rolled Steel Tubes For Oil Gas Fluid 34CrMo4
