Water Cooling Continuous Casting Machine , R4M 1S Steel Billet CCM





1. continuous caster steel
2. kinds of arc radius
3. kinds of billet type
4. kinds of strand
5.  More options



We can produce high quality continuous casting machines from 1 to 8 strands with the lowest equipment manufacturing cost.We can design, manufacture the up-to-date billet continuous casting machine in accordance with the user's steelmaking capacity, billet size, steel grades and the user's field conditions.





1. Basic standby technical parameters:



Steel billet casting machine radius

4m

Strand quantity

1 strand

Ladle support type

Dumping ladle,Ladle mounts,Ladle car

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Water cooling , 1 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Manual cutting

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed





2.  Technical process description and capacity of steel billet CCM



Induction furnace:



Nominal capacity

5T

Tap-to-tap cycle

45min

Furnace quantity

3set





Production capacity



Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

80000t/year





3.  Casting speed, productivity and strand quantity



    R4m radius casting machine can cast steel groups of different specifications,

    the maximum casting speed is as follows:



Casting sectional area(mm)

80×80



100×100



120×120



Casting speed(m/min)

3.0

2.8

2.6





NO.

Billet

size

Casting speed

hourly output

(tons)

Daily output

24hour

(tons)

Annual output(330days)

(tons)

1

80×80

3.0m/min

7.42

178

58,766

2

100×100

2.8m/min

10.81

259.

85615

3

120×120

2.6m/min

15.69

377

124,266



The calculation results is the ideal state of the production, please according to own actual situation of

 adjustment.



Steel grade

Casting grade(m/min

Effective deformation rate(ε)

Allowable deformation

rate(εmax)

Straight carbon steel

1.8~2.5

Please refer to the computational table

0.25

Low alloy steel

1.3~2.0

Please refer to the computational table

0.15~0.2





4.  CCM equipment parts list



No.

Machine name

Weight

Unit

Quantity

1

Ladle mounts

6T

set

1

2

Tundish car

2T

set

1

3

Tundish

1T

pec

1

4

Mould 80×80

0.53T

set

1

5

Mould cover

0.1T

set

1

6

Vibration device

1.5T

set

1

7

Secondary cooling spray tube

0.5T

set

1

8

Secondary cooling guide part roll

0.5T

set

1

9

Secondary cooling overboard steam drain system

1.1T

set

1

10

Straightening and withdrawal machine

6T

set

1

11

Dummy bar

0.8T

set

1

12

Dummy bar putting device

0.8T

set

1

13

Roller before cutting

2T

set

1

14

Simple cooling bed

1.2T

set

1

15

Billet head and cut off slag collection system

0.5T

set

1

16

Roll road

2T

set

1

17

Billet out-going roller

2×2=4T

set

2

18

Steel lateral shifting machine

0.6T

set

1

19

Flame cutting machine

0.8T

set

1

20

Hydraulic station system

2T

set

1

21

Water cooling station

1T

set

1

22

Three electric system

0.5T

set

1

22.1

Electric control system



set

1

22.2

Scene meter



set

1

22.3

Computer system



set

1

23

Steel platform

36T

set

1

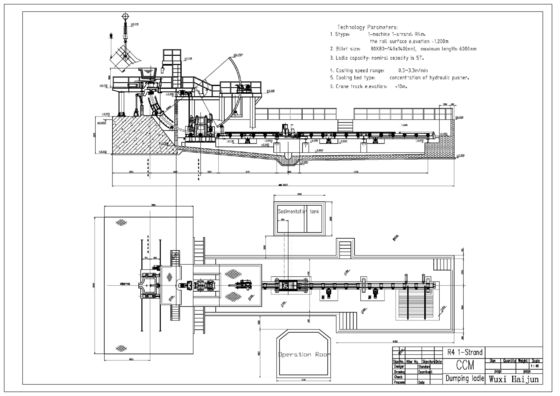

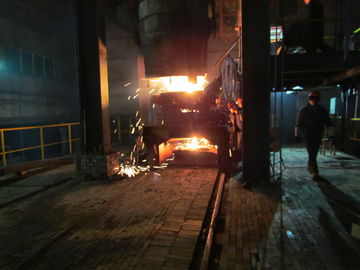

Water Cooling Continuous Casting Machine , R4M 1S Steel Billet CCM

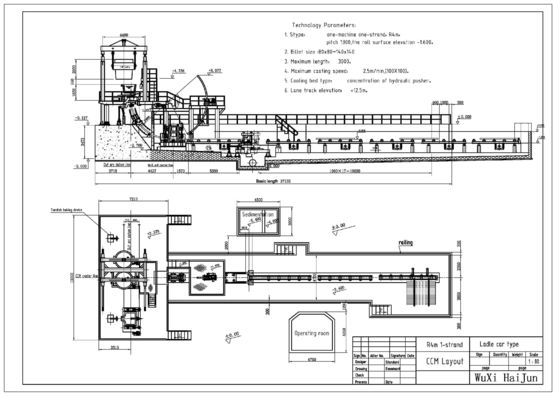

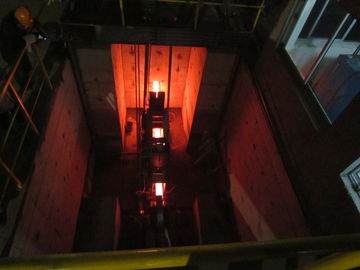

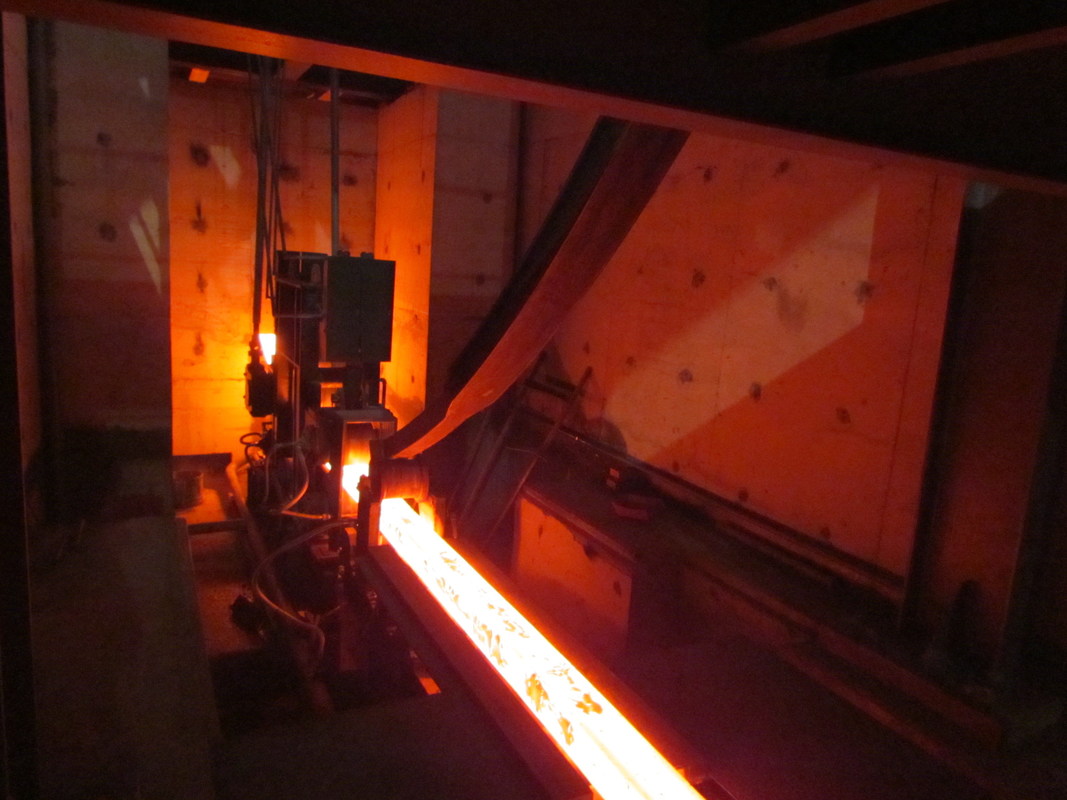

Water Cooling Continuous Casting Machine , R4M 1S Steel Billet CCM
