Shaft Induction hardening machine tool

Shaft Induction hardening machine tool
Shaft Induction hardening machine tool

Large Image :  Shaft Induction hardening machine tool

Product Details:
Place of Origin: China
Brand Name: Jinlai
Certification: ISO9001:2008
Payment & Shipping Terms:
Minimum Order Quantity: 1 PC
Packaging Details: export wooden case
Delivery Time: 1-3 working days after receiving your payment
Payment Terms: T/T
Supply Ability: 100PCS/MONTH
Detailed Product Description
High Light:

Induction hardening machine tool

,

Induction hardening machine

,

shaft induction hardening tool

Quick Details

  • Place of Origin:Guangdong, China (Mainland)
  • Brand Name:Jinlai
  • Model Number:0.5m
  • certificate:ISO9001:2008
  • max workpiece length:500-1000mm

Packaging & Delivery

Packaging Details:export wooden case
Delivery Detail:1-7 working days after receiving your payment

Specifications

Shaft Induction hardening machine tool
1.Quenching time is short.
2.Low quenching deformation.
3.Quenching range size accurat

Shaft Induction hardening machine tool

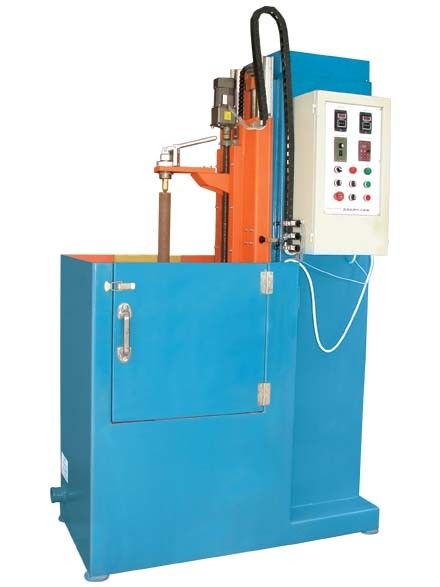

The Vertical solid high-frequency quenching machine is one of the complete set induction heating equipments of our company.

It mainly applied processing axis class and the gear components, but also the plate class components and the peculiar part. It adjust the high/medium/ultrasonic frequency power source, using the spray coolant conditions, can meet factories' normal request. For the hydraulic pressure actuation, the electrical control semiautomatic machine, mainly used in quenching, annealing or the fire working procedure, it has manually, semi-automatic, and full-automatic function, simple operation and easily to learn.

Main Feature


1. Quenching time is short, parts of the HRC value can be adjusted.
2. The workpiece rotation set any speed of any interval to meet the coaxial diameters different.
3. Quenching range size accurately.
4. Part layer deep meet the technical requirements, similar to non-oxidative quenching (if required can also be quenched in the protective atmosphere).
5. Low quenching deformation.
6. Reproducible well in the process.
7. Easy to quench multiple local of workpiece.

Technical Parameter

Total power2kwWorkpiece rotation speed range0-200r/min
Max. workpiece length500-1000mmWorkpiece return speed2-50mm/s
Max. diameter of quenching workpiece300mmMachine tool weight350kg
Max. workpiece weight200kgDimensions(LXWXH)1100x650x1450/mm
1350x650x2100/mm
The scope of the workpiece moving speed2.50mm/sCooling MethodSpray/extract(optional)

Shaft Induction hardening machine tool 0

Shaft Induction hardening machine tool 1Shaft Induction hardening machine tool 2
