Secondary Cooling Billet Casting Machine , R6M 1 Strand ISO Slab Caster

Secondary Cooling Billet Casting Machine , R6M 1 Strand ISO Slab Caster
Secondary Cooling Billet Casting Machine , R6M 1 Strand ISO Slab Caster Secondary Cooling Billet Casting Machine , R6M 1 Strand ISO Slab Caster Secondary Cooling Billet Casting Machine , R6M 1 Strand ISO Slab Caster Secondary Cooling Billet Casting Machine , R6M 1 Strand ISO Slab Caster

Large Image :  Secondary Cooling Billet Casting Machine , R6M 1 Strand ISO Slab Caster

Product Details:
Place of Origin: Wuxi,China (Mainland)
Brand Name: HAIJUN
Model Number: R6M 1strand
Payment & Shipping Terms:
Minimum Order Quantity: 1 strand
Packaging Details: Container
Delivery Time: 2 months
Payment Terms: T/T,L/C
Supply Ability: 30 strands CCM per year
Contact Now
Detailed Product Description



Secondary Cooling Billet Casting Machine , R6M 1 Strand  ISO Slab Caster

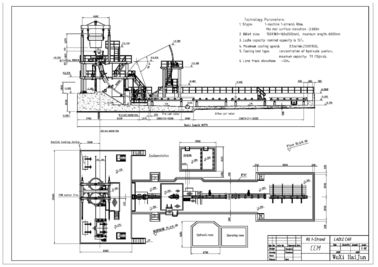

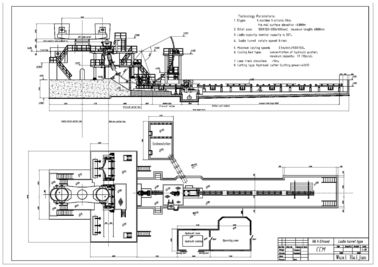

Ladle car or ladle turret

Billet cutting:Flame cutting machine

radius: R6M

Strand number:1 strand

with ISO certification





Description:



1. Basic standby technical parameters:



Steel billet casting machine radius

6m

Strand quantity

1 strand

Ladle support type

Ladle car or ladle turret

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Water cooling , 1 adjusting circuit

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Flame cutting machine

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed



2.  Technical process description and capacity of steel billet CCM



Induction furnace:



Nominal capacity

10T

Tap-to-tap cycle

60min

Furnace quantity

2set



Production capacity :



Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

100,000t/year



3.  Casting speed, productivity and strand quantity



    R6m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:



Casting sectional area(mm)

100×100

125×125

150×150

Casting speed(m/min)

3.0

2.7

2.5



NO.

Billet

size

Casting speed

hourly output

(tons)

Daily output

24hour

(tons)

Annual output(330days)

(tons)

1

100×100

3.0m/min

12.01

288.

95123

2

125×125
