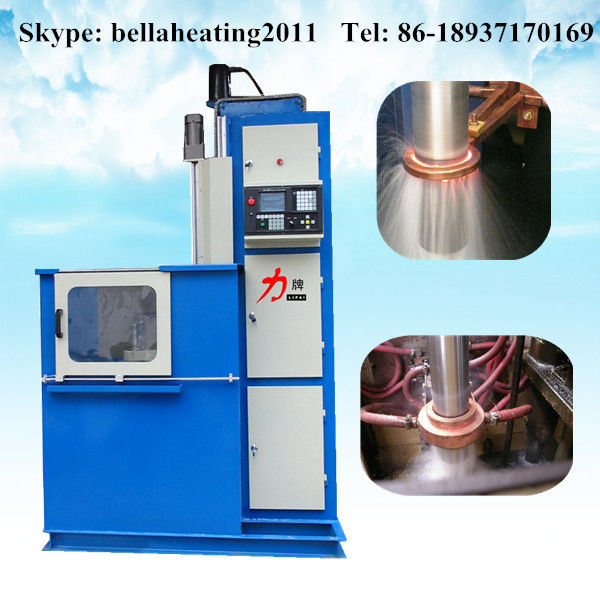

LP-SK-1000 Vertical Scanning CNC induction hardening machine tool

LP-SK-1000 Vertical Scanning CNC induction hardening machine tool
LP-SK-1000 Vertical Scanning CNC induction hardening machine tool

Large Image :  LP-SK-1000 Vertical Scanning CNC induction hardening machine tool

Product Details:
Place of Origin: China
Brand Name: LIPAI
Certification: CO, Form A, Form E
Model Number: LP-SK-1000
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: USD 14000
Packaging Details: Packaged in fumigation-free wooden cases with anti-moisture/dust film and anti-shock foam inside and steel belts and rivets outside for fastening. The stand of the case can bear weight twice of that of the machine.
Delivery Time: 30 days after down payment
Payment Terms: T/T, 30% down payment, 70% before sending the goods
Supply Ability: 200 SETS/YEAR
Detailed Product Description
High Light:

LP-SK-1000 Vertical Scanning CNC induction hardening machine tool

,

CNC induction hardening machine tool

,

induction hardening machine tool

Technical Parameters:

ModelLP-SK-1000
Max. Hardening length(mm)1000
Max Swing Diameter(mm)≤φ500
Workpiece Moving Speed(mm/s)2-60
Rotation Speed(r/min)40-150
Tip Moving Speed(mm/min)480
Workpiece Weight(kg)≤80
Input Voltage(V)three phase 380
Gross Motor Power(kw)1.1
Hardening Workpieces/timesingle/double

Features:

* Adopting CNC control system, advanced performance, convenient debugging, able to meet quenching requirements of complexed workpiece.

* Able to realize continuous scanning quenching, simultaneous quenching, continuous sectional scanning quenching (the sections are set by program, requiring no travel switches)

* Applicable for typical shafts (within corresponding scopes): gear shafts, camshafts, external circles and ends of disc-type components;

* The electric control system has quenching and cooling water joints. The quenching process and cooling process can be controlled according to technique requirements.

* Low running cost. The motor driven by workpiece only takes 250w and the power consumption of the whole machine is less than 20% of that of the mechanical equipment.

* Profile structure frame, low cost, light weight, economical and practical;

* Convenient maintenance and application, low failure rate, free of leakage, solving the difficulties of traditional machine tools;

* High automation, high production efficiency;

* The guide rail adopts straight bearing, featuring high precision, small friction and long service life;

* Weighing device balances the weight through chain wheels and chains.

Main Applications:

large shafts, motors, steam turbine spindle, cylinder piston rods, etc.

(1) Quenching external circles: full or partial external circle quenching of various shafts, tubes, round components (such as bearings, valves, etc.)

(2) Quenching internal circles: full or partial internal circle quenching of various tubes and mechanical components, such as cylinder sleeves, shaft sleeves, etc. full or partial internal circle quenching of mechanical component ends;

(3) Irregular component quenching: full or partial quenching of some terminal of the irregular components;

(4) Quite large component quenching: full or partial quenching of quite large components with large size and heavy weight, such as marine gears, dam rail, large oil pipelines, etc.

Packaging:

Packaged in fumigated wooden case; winded by anti-moisture film and surrounded by anti-shock foam; the stand of the wooden case can bear weight twice of the equipment weight.
