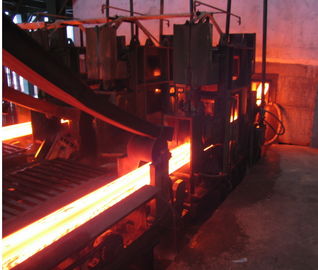

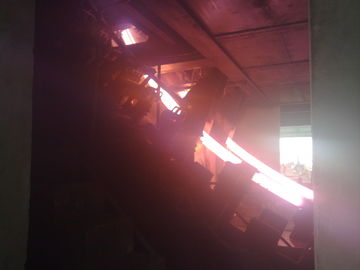

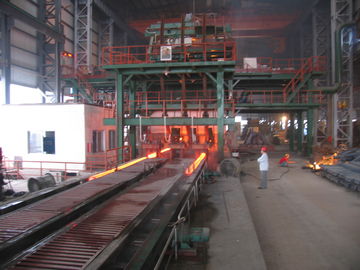

Continuous Casting Machines

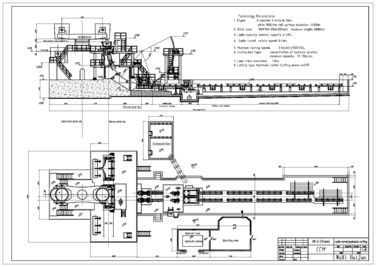

Steel billet casting machine radius

6m

Strand quantity

2 strands

Ladle support type

Ladle turret,Ladle car

Tundish carriage

Semi-portal, cross sliding function

Casting method

Metering nozzle, open casting

Secondary cooling

Water cooling , 1 adjusting circuit

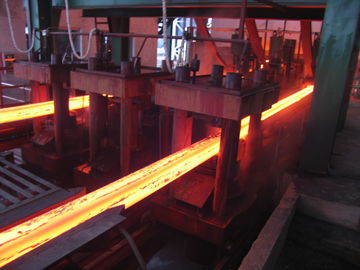

Withdrawal straightening machine

Totally 5 roller, progressive straightening

Roll table

Chain group centralized drive

Dummy bar

Rigid, with self-adapting dummy bar head

Billet cutting

Hydraulic cutting machine

Billet conveying

Group centralized live roller table

Cooling bank type

Simple cooling bed

Nominal capacity

15T

Tap-to-tap cycle

60min

Furnace quantity

3sets

Working days

330 days/year

Average number of daily furnace

24/day

Production capacity

200,000t/year

Casting sectional area(mm)

100×100

125×125

150×150

Casting speed(m/min)

2.8

2.6

2.4

NO.

Billet

size

Casting speed

hourly output

(tons)

Daily output

20hour

(tons)

Annual output(300days)

(tons)

1

100×100

2.8m/min

10.55

211

63302

2

125×125

2.6m/min

15.31

306

918445

3

150×150

2.4m/min

20.35

407

122,083

Steel grade

Casting grade(m/min)

Effective deformation rate(ε)

Allowable deformation rate(εmax)

Straight carbon steel

1.8～2.5

Please refer to the computational table

0.25

Low alloy steel

1.3～2.0

Please refer to the computational table

0.15～0.2

№

Equipment name

Weight

Model and specification

Unit

Quantity

1

Ladle turret

17T

Set

1

2

Tundish car

2.5×2=5T

Set

2

3

Tundish

1.4×2=2.8T

piece

2

4

Mould

0.5×2=1T

150×150

Set

2

5

Foot roll of mould

0.01×2=0.02T

Set

2

6

Mould  cover

0.1×2=0.2T

Set

2

7

Oscillator device

2×2=4T

Set

2

8

Secondary cooling spray tube

0.5×2=1T

Set

2

9

Secondary cooling guiding section rod

0.7×2=1.4T

Set

2

10

Secondary cooling vapor exhausting system

1.5T

Set

1

11

Withdrawal and straightening machine

5×2=10T

Set

2

12

Casting blank vibration prevention system

0.3×2=0.6T

Set

2

13

Dummy bar

0.9×2=1.8T

150×150

Set

2

14

Dummy bar storage device

0.7×2=1.4T

Set

2

15

Shears approach roller

2×2=4T

Set

2

16

Flame cutting machine

3T

Set

2

17

Automatic cut-to-length device

0.5T

Set

2

18

Travelling roller

2×2=4T

Set

2

19

Knockout roller

3.5T

Set

4

20

Steel transverse delivering machine

3.5T

Set

1

21

Hydraulic station system

2T

Set

1

22

Secondary cooling water breaker

Set

2

23

Cooling automation water  distribution plant

1T

Set

1

24.1

Control panel

Set

1

24.2

Field instrument

Set

1

24.3

Computer system

Set

1

25

Steel platform

60T

1
