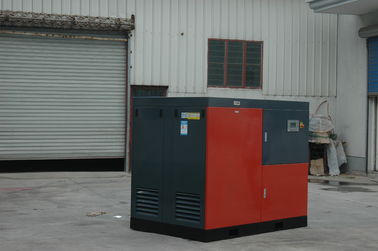

90KW 120HP Screw Type Direct Driven Air Compressor Water Cooling and Energy Saving

90KW 120HP Screw Type Direct Driven Air Compressor Water Cooling and Energy Saving
90KW 120HP Screw Type Direct Driven Air Compressor Water Cooling and Energy Saving 90KW 120HP Screw Type Direct Driven Air Compressor Water Cooling and Energy Saving

Large Image :  90KW 120HP Screw Type Direct Driven Air Compressor Water Cooling and Energy Saving

Product Details:
Place of Origin: China
Brand Name: OSG
Certification: CE/ISO/SGS
Model Number: EX-90W
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Standard packing or Wooden Box According to Your Request
Delivery Time: 7-10 working days after received your payment
Payment Terms: T/T or LC
Supply Ability: 10 pcs per day
Detailed Product Description
Product Name: 90KW Water Cooling Air Compressor Application: Textile, Medical, Pharmaceutical Materials, Power, Electronic, Spraying, tobacco, Instruments, Food Processing, Feed Processing, Machinery processing, Etc
Dimension: 2600*1280*1900mm Weight: 2500kgs
Diameter Of Outlet: DN65 Power: 380V/3Phase/50Hz
Standard: CE/ISO/SGS Exhaust Temperature: ≤ Ambient temperature +8℃
Intake Air Temperature: ≤ 45℃ Noise: ≤ 75±2
Oil Content: ≈3 Ppm
High Light:

direct drive air compressor

,

direct air compressor

90KW 120HP Screw Type Direct Driven Air Compressor Water Cooling and Energy Saving​





 Product Description



EX direct series features



The transmission efficiency of the direct drive is high, greatly improving the air compressor power to

achieve the purpose of energy saving.

Long operating life, low failure rate.



Specification:




Model:EX-90W

Power(KW)

90 KW

Horse(HP)

120 HP

Pressure

Bar

Psi



7

100



8

115



10

145



13

188

F.A.D

m³/min

L/min

CFM



16.8

16800

593



15.8

15800

558



14.2

14200

501



11.6

11600

410

Exhaust temperature

≤ +8℃

Intake air temperature

No more than 45 degree centigrade

Noise dB(A)

≤75±2

Oil content (ppm)

≈3

Power V/pb/Hz

380/3/50

Long(m)×Wide(mm)×High(mm)

2600*1280*1900

Weight (kg)

1280

Diameter of outlet

2"





Professional service



After-sale service is always one of the most concerned question, and after-sale service in time is the key.

We have Professional after sale service engineers and complete spare parts. The following branches

serve every customer to provide timely and professional service and technical training.





Adequate supply of resources



Use OSG genuine spare parts and consumables is the basic guarantee for air compressor running long.

We have the normal and efficient operation, also plenty of spare parts and consumables reserve,

ready to meet the needs of customers.





 Product quality guarantee



High quality products are the core foundation of business operation.

Any product from raw material purchasing, outsourcing parts

processing to the process after the performance and operation of strict tests ensure the machines of high

quality.





 Application field



Pharmaceutical materials, power, electronic, spraying, tobacco, instruments, etc.





Why we choose Honest?



1: European owned enterprise excellent technology and credit,trustworthy products.

2: Large European exhaust airend,ensure the efficiency,economy and durability of the machine.

3: Patent oil-gas separation system that oil content ≤3ppm.it is imported from Europe.

4: Design of frame-less box structure is unique,let your installation,,maintenance and repair work truly

 barrier free.

5: Centrifugal super exhaust system is especially suitable for high temperature environment of China.

6: Intelligent control system is true,do what you want,Each product reflects the design idea of “reliable ,

energy saving,environmental protection,convenient”





Competitive Advantage:



The transmission efficiency of the direct drive is high, greatly improving the air compressor power

 to achieve the purpose of energy saving.

 Long operating life, low failure rate.


Company Introdution:

OSG company has obtained a compressor production license
(certificate NO:XK06-010-00597),has obtained a quality system
certificate and general machinery certificate. product design,
manufacturing processes are strict in accordance with
ISO9001:2008 quality system standards,Our company
continuously improved own design, manufacturing technology
and inspection method,ensure higher quality standard, We
have established a nation wide service system of 40 offices,and
can provide satisfied services such as consulting, training,
repairing,spare parts supplying,etc.
