380V High Frequency Welding Machines For Air-Conditioner , Melting The Welding Ring
Quick Detail:

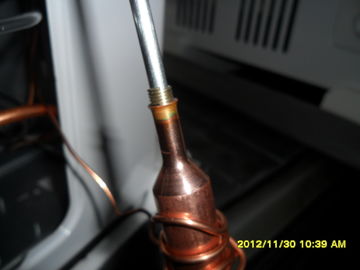

Using high frequency induction power supply output low voltage and high current,the use is on the solder points,Solder joint surface produce high-frequency electronic movement,forming eddy current,all the electrons move to generate heat (Skin effect and proximity effect),Make solder ontology surface temperatures to rise to the welding temperature,melting the welding ring and achieve the result of the solder joint sealing.This equipment is main used for refrigerator,freezer,air-conditioner etc Refrigeration appliance pipe welding.
2. We have a large team and we provide one-station service
Description:
High frequency welding machine can solve the problem of refrigeration electrical appliances enterprise welding equipment
Welding leakage and welding plugging caused in-refrigeration
The welder needs high technical skills ,and the training time is very long.
Personnel fluidity big, high turnover rate
The solder amount is very big and the cost is too high
Combustible gas, open flame operation will have safety hidden trouble
Exhaust emissions, resulting in environmental pollution
The welding character of high frequency welding machine.
Intelligent integration and easy to operate
Uniform heating, the depth of welding point is the same
Avoid wasting and can put down the production cost
Reduce the welding leakage, improve the quality of the refrigerator
No open fire operation which is safe and environmental protection
Applications:

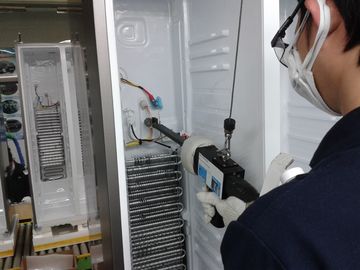

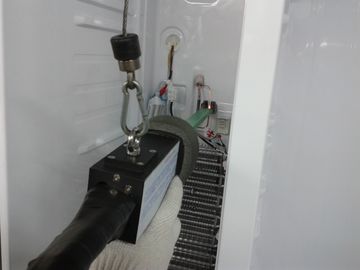

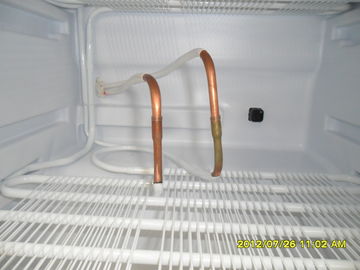

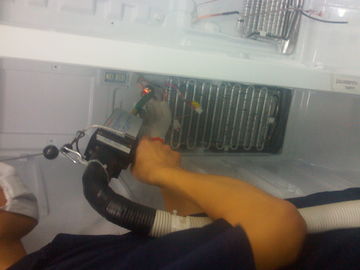

1. Welding in front of the evaporator

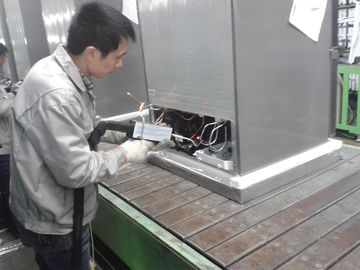

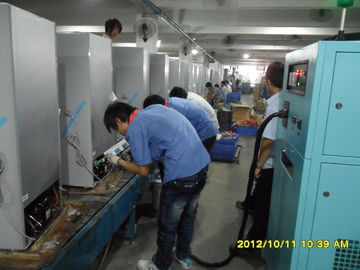

2. Back row machine room welding
Specifications:
1 Model TRHF-KV-Ⅲ
2 Input pressureThree phase 380V±10% 50/60HZ
3 The maximum input power: 11KVA
4 The maximum output power 10KVA
5 Oscillation frequency 21-27KHz
6 Cooling Model water-cooling
7 Water quality requirement distilled water
8 Hydraulic pressure 0.35～0.45 Mpa
9 Flow 10 ℓ/min
10 Equipment environment requirements Temperature 5~40℃ humidity＜85%
Competitive Advantage:
|
Welding manner |
Assemble percent of pass at one time |
The market feedback rate(1year) |
|
flame weld |
3‰ |
1‰ |
|
High-frequency welding |
1‰ |
0.1‰ |
|
Welding manner |
copper content |
silver content |
|

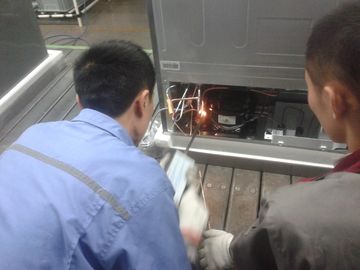

Fire welding(welding rod) |
0.60g |
0.50g |
|
High frequency welding(welding ring) |
0.35g |
0.21g |
|
Single point welding material saving |
0.25g |
0.29g |
|
Welding manner |
The qualification rate of one time assemble Copper joints point |
The qualification rate of one time assemble sliver joints point |
Market feedback rate Copper welding point |
Market feedback rate sliver welding point |
|
Fire flame welding |
2‰ |
4‰ |
0.5‰ |
1.7‰ |
|
High frequency welding |
1‰ |
2‰ |
0.1‰ |
0.2‰ |
