Product Details:
Payment & Shipping Terms:
|
Type Of Bag Filter: | Baghouse Filter | Type Of Cake Releasing: | Off Line |
---|---|---|---|
Filter Velosity: | 1.2m/min | Filter Media: | Polyester Filter Bags |
Size Of Filter: | D130x2450mm | Emmission: | <30mg/ NM3 |
High Light: | pulse jet fabric filter,dust collector bag filter |

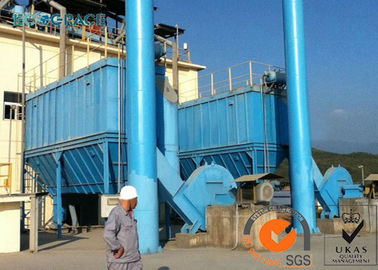

Woodworking 3 Micron Dust Collector Bag Filter For Induction Furnace Steel Mill
Induction furnace dust collector
1. High efficiency and low cost
2. Compact design collector
3. Long using life
industrial dust filter, GRACE FILTER, dust extractor, baghouses (also called pulse jet baghouse, pulsejet dust collectors, etc...) is self contained, fully automated where needed. We also supply and install ducting, access platforms, ventilation and instrumentation. Bughouses are engineered for dusts of 3 microns and larger, in the following applications:
We offer a full range of collector designs and media choices to solve the toughest pollution control problems involving high temperatures, pressures and corrosives.Rugged construction is standard.
All-welded fabrication for operation to ±20" WG (rectangular models); 11 gauge, 12 vertical wire cages are standard. Top and side bag models are available.
For demanding high pressure/high vacuum applications, we offer two styles of cylindrical dust collectors: top and side dust collector bag designs. Each features all welded construction for up to 14.7 spin. Explosion containment or ASME code designs are available.
All are available with a wide variety of special features:
Model |
PPC32-3 |
PPC32-4 |
32-5 |
32-6 |
64-4 |
64-5 |
64-6 |
64-7 |
64-8 |
|
Air volume (m3 /h) |
6900 |
8930 |
11160 |
13390 |
17800 |
22300 |
26700 |
31200 |
35700 |
|
Total filter area (m2) |
93 |
124 |
155 |
186 |
248 |
310 |
372 |
434 |
496 |
|
Chamber(pcs) |
3 |
4 |
5 |
6 |
4 |
5 |
6 |
7 |
8 |
|
Quantity of filter bag(pcs) |
32 |
64 |
||||||||
Total quantity of filter bag(pcs) |
96 |
128 |
160 |
192 |
256 |
320 |
384 |
448 |
512 |
|
Pulse valve |
Quantity |
3 |
4 |
5 |
6 |
4 |
5 |
6 |
7 |
8 |
Specification |
1 |
2 |
||||||||
Specification of filter bag |
130(D.)*2450 |
|||||||||
Filter material |
Based on flue gas properties |
|||||||||
Filtration speed |
0.8~2.0(Adjustable) |
|||||||||
Negative pressure |
less than 6000 |
|||||||||
Resistance |
1470~1770 |
|||||||||
Inlet dust concentration |
less than 200 |
less than 1000 |
||||||||
Blowing pressure |
0.5~0.7 |
|||||||||
Compressed air consumption |
0.27 |
0.37 |
0.46 |
0.55 |
1.2 |
1.5 |
1.8 |
2.1 |
2.4 |
|
Air-locking unit |
Adjustable |
|||||||||
Screw conveyor |
No |
Adjustable |
||||||||
Area of heat preservation |
26.5 |
34 |
41 |
48.5 |
70 |
94 |
118 |
142 |
176 |
GRACE FILTER can provide a new, turnkey installation of a new dust collector, or can convert an existing dust collector to function in a new or updated environment. One of our experienced engineers stands ready to assist you when you mail us by See below for more information on any of our most commonly ordered dust collector projects.
Pulse Jet Bag house Dust Collectors are also commonly spelled Pulse-Jet Dust Collector or Pulsejet Dust collector
Item | Technical Parameter |
Air flow M3/ H | 5000-80000 |
Filter speed Mter/ min | 1.0-2.0 M/Min |
Temperature of the fume | <204 degree C |
Emission mg/Nm3 | < 30mg |
