Product Details:
Payment & Shipping Terms:
|
Product Name: | Quartz Sand Filter | Flow Rate: | 75-125 T/Hr |
---|---|---|---|
Inlet And Outlet Diameter: | DN125 | Tank Size: | 1800*1900 |
Quartz Sand Weight: | 2 T | Power Supply: | 380V/220V/110V 50Hz/60Hz |
Control Mode: | Automatic | Working Pressure: | 0.6Mpa/1Mpa |
Highlight: | Walnut Shell Filter,swimming pool sand filters |

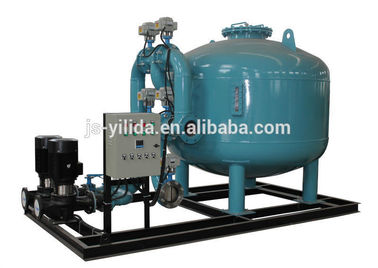

High Filtration Speed Industrial Gravity Rapid Sand Filter Water Treatment Device
A rapid sand filter is a water treatment device that uses sand or other grainy media to filterout the
solid particles suspended in water. These suspended solids include dirt and other organic matter
that cause water to appear cloudy or turbid. Rapid sand filtration is commonly used by municipal
water treatment plants to clean surface and ground water intended for drinking water. It is also
used to treat sewage and industrial wastewater containing biological contaminants before these
waters are discharged to the environment.
Rapid sand filtration takes place in a tank containing one or more layers of grainy media, such as
sand, anthracite or hard coal, garnet, magnetite, or other minerals. The total media depth typically
ranges from 2-6 feet (about 0.6-1.8 meters). In many systems the incoming water, or influent, enters near
the top of the tank and
flows downward through the media. The outgoing water, or effluent, leaves through a drainage
system called the underdrain that lies underneath the filter media bed.
As the influent travels through the rapid sand filter, many of the water-borne suspended solids become
trapped above or within the pores between grains. This straining
process is the primary mechanism by which solids are removed from the water. In addition,
suspended solids are adsorbed onto the surface of the grains due to intermolecular attractive
forces. Other physical, chemical, and biological processes also enhance solids removal during
filtration.
The effectiveness of a rapid sand filter is highly dependent on the characteristics of the influent and
the grainy media. Important influent properties include the concentrations, types, and particle charges
of the suspended solids in the water. The depth of the media bed and the particle charges, sizes, and
shapes of the grains are also crucial.
Smooth round grains crowd closely together and create very small pores. More jagged grains may
produce larger pores, but are better at snagging solids as they pass by. Typically, layers of different
grains are used to take advantage of multiple removal mechanisms.
Over time, the media bed of a rapid sand filter becomes clogged with accumulated solids. At this point,
the filter is cleaned through a process called backwashing. Wash water is pumped upward through the
bed to dislodge the solids and rinse them out of the tank. As the wash water is drained, the granular
media settle back into their original layers, and the filter is ready to be used again.
Generally speaking, if your filter is a quartz sand filter, it usually has two main functions:
1. To reduce suspended solids (turbidity). Otherwise, as the system is running, suspended solids
increases, which will exacerbate the deposition and other problems.
2. Degreasing. Especially the oily turbid circulation, such as steel rolling and continuous casting,
has high oil content and is easy for breeding microorganism and blocking the nozzles.
Technical description of by-pass filter for the industrial circulating water
Flow filter flow is designed according to 5% to 10% of the total circulation volume (the by-pass filter
flow of the cooling water is designed by 10 % of the circulation volume and the by-pass filter flow of
chilled water is designed by 5% of the circulation volume) and the filtration rate is designed by 20 —
3Smih according to water quality of the system. Specific to corrosive suspended solids of the
circulating water system as well as the control, our technical support team has designed a variety of manual/automatic by-pass filtrating equipment in line with customer demand.
Back-washing status
With the continuous accumulation of impurities in the filter layer, head loss will continue to increase.
The factory setting with backwash once in24 hours , when it reaches the setting time, automatic back
-washing will be started to clean accumulated impurities.
The working principle is back-washing recoil and surface cleaning.
Characteristics
• complete adjustment on manual/automatic control testing before delivery.
• fine selected filtering material, high filtering efficiency.
• carbon steel with epoxy painting for internal and outer material.
• Distributor: simple, stable and reliable.
• Fine finishing water collector with high strength and working lifespan of over 10 years.
• Reliable performance: complete testing will be actuated before deliver out of the factory
• Convenient installation: just connect the water inlet and outlet pipe and drain pipe to start the
working, no need for assemble on site.
• Little water consumption for back-washing: it adopts homogeneous filtering material and prolong
the back-washing cycle, the total water consumption has been reduced.
• High efficient back-washing: advanced water collector will ensure stable and efficient backwash
effect.
FAQ:
01. how small a solid needs to be removed,
02. how dirty the water is,
03. how the water will be used once it is filtered,
04. and the source of backwash water needed to clean the filters.
Specifications:
Technical parameters sheet for Shallow Sand Filter(bypass sand filter)
model |
Filter diameter |
Height |
inlet-outlet |
filtration area |
capacity |
mm |
mm |
mm |
m² |
m³/hour |
|
YL-SF-500 |
500 |
816 |
40 |
0.2 |
6~10 |
YL-SF-600 |
600 |
874 |
40 |
0.28 |
8~14 |
YL-SF-700 |
700 |
900 |
40 |
0.38 |
12~19 |
YL-SF-800 |
800 |
960 |
DN50 |
0.50 |
15-25 |
YL-SF-1000 |
1000 |
1200 |
DN50 |
0.79 |
23-39 |
YL-SF-1200 |
1200 |
1400 |
DN80 |
1.13 |
33-55 |
YL-SF-1400 |
1400 |
1600 |
DN100 |
1.54 |
45-75 |
YL-SF-1600 |
1600 |
1800 |
DN100 |
2.01 |
60-100 |
YL-SF-1800 |
1800 |
1950 |
DN150 |
2.54 |
75-125 |
YL-SF-2000 |
2000 |
2150 |
DN150 |
3.14 |
95-155 |
YL-SF-2200 |
2200 |
2250 |
DN150 |
3.80 |
115-190 |
YL-SF-2400 |
2400 |
2100 |
DN150 |
4.52 |
130-210 |
YL-SF-2600 |
2600 |
2400 |
DN150 |
5.30 |
145-225 |
YL-SF-2800 |
2800 |
2500 |
DN200 |
6.15 |
155-240 |
YL-SF-3000 |
3000 |
2600 |
DN200 |
7.00 |
170-255 |
YL-SF-3200 |
3200 |
2800 |
DN250 |
8.15 |
270-320 |
