| High Light: | electrical induction furnace,induction Smelting Furnace |
||
|---|---|---|---|

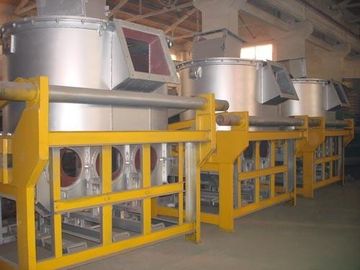

Core Type Working Of Induction Furnace Melting Process GYT-2000
Description:
1. Minimum Capacity (T): 0.3
2. Power Factor: 0.95
3. Power Consumption(kw) : 500
4. Rated Voltage (V): 380
5. Phase Number: 3
6. Frequency of Input Current (HZ): 50
7. Melting Rate ( KG): 2000
8. Power Consumption(kw h/t) : 500
9. Rating Working Temperature (℃): 1200
10. Hook: 3
11. Cooling System: Water Cooling
12. Rated Capacity (KG): 4000
Specifications:
These equipments are suitable for copper and copper alloy melting and casting.
|
Type |
Content(t) |
Ele. Capacity(KW) |
Voltage(V) |
Temperature(° C) |
Melting Rate(t/h) |
|
G/T-0.15-45 |
0.15 |
45 |
380 |
1200 |
0.15 |
|
G/T-0.3-75 |
0.3 |
75 |
380 |
1200 |
0.3 |
|
G/T-0.5-120 |
0.5 |
120 |
380 |
1200 |
0.5 |
|
G/T-0.75-185 |
0.75 |
185 |
380 |
1200 |
0.75 |
|
G/T-1-240 |
1 |
240 |
380 |
1200 |
1 |
|
G/T-1.5-400 |
1.5 |
400 |
380 |
1200 |
1.5 |
|
G/T-2-500 |
2 |
500 |
380 |
1200 |
2 |
|
G/T-3-700 |
3 |
700 |
380 |
1200 |
3 |
|
G/T-5-1500 |
5 |
1500 |
380 |
1200 |
5 |
|
Note: For brass, the Ele. Capacity will be 0.85 of the figure; Temperature(° C): 1250 |
|||||
Product Introduction:
The born and development of Melting Furnace for copper rod casting system that break the traditional copper and copper alloy producing way shorten the copper processing time. The traditional process is divided three steps of melting and casting, heating process and cooling process
Advantages:
i) Stable product quality;
ii) Low energy consumption;
iii) Removable inductor maintain easily;
iv) PLC controlling, and servo motor driven system;
