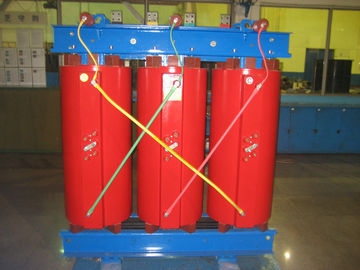

10kV 2000kVA Insulation Power Distribution Transformer Dry Type For Power Plant
Quick Detail:
1.Low loss, low noise
2.Low partial discharge
3.High quality & reliability, efficiency
4.Good security
5.Environmental protection
6.Small size, light weight and attractive design
7.dry type
Description:
SC(B)10 series of non-encapsulated dry-type transformer is a new product with environmental protection, energy saving and security concepts. NOMEX insulation material which is made by U.S. Du Pont is used. Anaerobic, high-conductivity copper electromagnetic is used in high-voltage winding and low- voltage winding. Well-designed continuous, foil-type structure and vacuum pressure treatment process Impregnation (VPI) make partial discharge to small. And without any cracking or reduction in the level of insulation phenomenon in the entire period. Overall vacuum impregnation, high temperature curing treatment, supported by using high-strength ceramics, and have a good capacity of sudden short-circuit current. The maximum allowable operating temperature of H-class heat-resistant coil insulation levels is 180℃, and the main insulating material is C-level (heat-resistant up to 220℃) of NOMEX paper. And there have more design margin. Products can be installed in the dirty environment and fire safety requirements, larger load area.
Main Features are as following:
High reliability
Good security
Good environmental protection
Small size, light weight, attractive design.
Resin casted SC(B)10 dry type transformers of glass fiber reinforced thin insulation, could be used as replacement of oil-immersed type distribution transformers. They are particularly suitable for power plant, high-rise building, commercial center, theater, hospital, laboratory, museum, oil drilling platform, ship, port, station, airport, petrochemical plant, mass transit railway, tunnel, mine underground and other important place.
Applications:
SG(B) 10 series of non-encapsulated dry type transformers are applied in residential buildings, business center, shopping center, small factories and so on.
SC(B)9, SC(B)10 glass fiber reinforced thin insulation resin casted dry type transformers are particularly suitable for power plant, high-rise building, commercial center, theater, hospital, laboratory, museum, oil drilling platform, ship, port, station, airport, petrochemical plant, mass transit railway, tunnel, mine underground and other important place.
Specifications:
SC(B)10 Series epoxy resin casting dry type transformer of class 10kV
This parameter list only represents individual parameter of this product
Rated Voltage |
10kV |
Rated Capacity | 2000kVA |
Cooling Type | ONAN/ONAF/OFAF |
Winding Type | Double winding/Three winding/Toroidal |
Phase | Three phase/ Single phase |
Type | Core type/shell type |
Winding Material | Copper |
Frequency | 50Hz/60Hz |
Rated Capacity (kVA) |
Connection Symbol |
(kV) Rated voltage |
Tapping |
Loss (W) |
Non-load Circuit (%) |
Short-circuit impedance |
||
H.V. |
L.V. |
Non-load |
120℃ Loss |
|||||
30 |
Y ,yn0 D,Yn11 |
6 6.3 10 |
0.4 |
±5% ±2X2.5% |
205 |
780 |
2.6 |
4 |
50 |
285 |
1120 |
2.2 |
4 |
||||
80 |
380 |
1550 |
2.0 |
4 |
||||
100 |
410 |
1800 |
2.0 |
4 |
||||
125 |
470 |
2100 |
1.8 |
4 |
||||
160 |
550 |
2450 |
1.8 |
4 |
||||
200 |
650 |
2850 |
1.6 |
4 |
||||
250 |
740 |
3250 |
1.6 |
4 |
||||
315 |
880 |
3900 |
1.4 |
4 |
||||
400 |
1000 |
4600 |
1.4 |
4 |
||||
500 |
1180 |
5700 |
1.4 |
4 |
||||
630 |
1350 |
6500 |
1.4 |
4 |
||||
630 |
1300 |
6700 |
1.3 |
6 |
||||
800 |
1540 |
7800 |
1.3 |
6 |
||||
1000 |
1750 |
9250 |
1.3 |
6 |
||||
1250 |
2030 |
11000 |
1.1 |
6 |
||||
1600 |
2700 |
13500 |
1.1 |
6 |
||||
2000 |
3000 |
16200 |
1.1 |
6 |
||||
2500 |
3500 |
19500 |
1.0 |
6 |
