Alloys / 316L Stainless Steel prototyping DMLS 3D Printing for Die Casting Mold

Alloys / 316L Stainless Steel prototyping DMLS 3D Printing for Die Casting Mold
Alloys / 316L Stainless Steel prototyping DMLS 3D Printing for Die Casting Mold

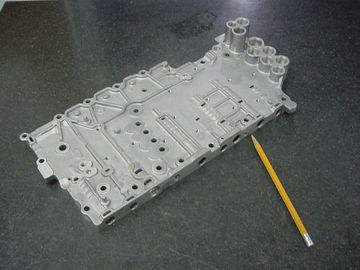

Large Image :  Alloys / 316L Stainless Steel prototyping DMLS 3D Printing for Die Casting Mold

Product Details:
Place of Origin: Shenzhen,China
Brand Name: StrongD
Certification: ISO9001:2008, SGS-CSTC
Model Number: Custom made
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiable
Packaging Details: Carton with foam wrapped, PE bags
Delivery Time: General 5-8 working days
Payment Terms: T/T, Western Union,paypal, MoneyGram
Supply Ability: 50pcs/Month, 1cm3/hour
Detailed Product Description
Material: Stainless Steel 316 L Materials Morphology: Powder
CNC Machining Or Not: Not Micro Machining Or Not: Not
Quotation Leadtime: Within 24 Hours Business Type: Manufacturer&factory
Tolerance: +/-0.05mm Price: Reasonable And Negotiate
Avaliable Files: Step/stp/igs/x_t/stl Material Capabilities: Cobalt-chromium Alloy,stainless Steel 316,titanium
High Light:

DMLS Printing Service

,

Aluminum DMLS



Alloys / 316L Stainless Steel prototyping DMLS 3D Printing for Die Casting Mold





Direct Metal Laser Sintering (DMLS) is a cutting edge additive metal fabrication technology that involves use of a 3D CAD model whereby an .stl file is created and sent to the machine’s software. The technology fuses metal powder into a solid part by melting it locally using the focused laser beam. Parts are built up additively layer by layer, typically using layers 20 micrometers thick. This process allows for highly complex geometries to be created directly from the 3D CAD data, fully automatically, in hours and without any tooling.

DMLS is a net-shape process, producing parts with high accuracy and detail resolution, good surface quality and excellent mechanical properties. DMLS allows your engineer to optimize their design by creating designs into one application and grow internal passages that curve, or multiple piece assemblies built as one.

DMLS is becoming the technology of choice for building functional metal prototypes and low volume production parts that are equivalent in strength to cast or billet physical properties, with a surface finish equivalent to a quality investment casting.

Materials include: 17-4 and 15-5 stainless steel, cobalt chromium, inconel 625 and 718, and titanium Ti6Alv4. Theoretically, almost any alloy metal can be used in this process once fully developed and validated.





Applications



·  Metal parts, fire test parts, fixture direct manufacturing and model demonstration test.

·  Development of new products.

·  Creative design and display of culture, creativity, clothing, household goods and other.

·  Research and development of implants, teeth, skull repair, prosthetics and medical

   equipment.

·  Product design, rapid production of high-precision injection molds.







Technical Specifications for Direct Metal Laser Sintering



Technique Specifications of EOSINT M 280

Equipment

Building volume

250 mm x 250 mm x 325 mm

(9.85 x 9.85 x 12.8 in)

Alloys / 316L Stainless Steel prototyping DMLS 3D Printing for Die Casting Mold 0

building platform 9.85 x 9.85 x 12.8 in

Laser type

Yb-fibre laser, 200 W oder 400 W (optional)

Precision optics

F-theta-lens, high-speed scanner

Scan speed

up to 7.0 m/s (23 ft./sec)

Variable focus diameter

100 - 500 μm (0.004 - 0.02 in)

Power supply

32 A

Power consumption

maximum 8.5 kW / typical 3.2 kW

Nitrogen generator

integrated

Compressed air supply

7,000 hPa; 20 m3/h (102 psi; 706 ft3/h)

Argon supply

4,000 hPa; 100 l/min

(58 psi; 3.5 ft3/min)(optional)









Service Step for a Project



Alloys / 316L Stainless Steel prototyping DMLS 3D Printing for Die Casting Mold 1
