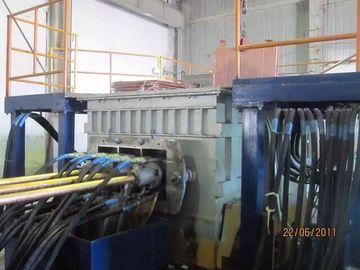

1500KG 360KW Induction Furnace Process Of Copper , High Frequency Induction Furnace

1500KG 360KW Induction Furnace Process Of Copper , High Frequency Induction Furnace
1500KG 360KW Induction Furnace Process Of Copper , High Frequency Induction Furnace

Large Image :  1500KG 360KW Induction Furnace Process Of Copper , High Frequency Induction Furnace

Product Details:
Place of Origin: Jiangsu, China
Brand Name: XINLIAN
Model Number: GYT1500
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Delivery Time: 25-30 days after advance payment
Payment Terms: L/C, T/T, Western Union
Detailed Product Description
High Light:

brass melting furnace

,

Copper Smelting Furnace



1500KG 360KW Induction Furnace Process Of Copper , High Frequency Induction Furnace





Description:



1. Minimum Capacity (T): 0.6

2. Melting Furnace Rated Capacity (T):3.5

3. Rated Voltage (V): 380

4. Phase Number: 3

5. Frequency of Input Current (HZ): 50

6. Melting Rate ( t/h): 1.5

7. Power Consumption(kw h/t) : 240

8. Temperature Holding Power (kw): 59

9. Rated Power (kw): 360

10. Rating Working Temperature (℃): 1200

11. Cooling Water Pressure (Mpa): 0.2-0.4

12. Cooling Water Consumption (t/h): 2.8 (Coil water jacket)

13. Weight of Iron Core (kg): 815

14. Weight of Molten Hook (kg): 210





Specifications:



These equipments are suitable for copper and copper alloy melting and casting.



Type

Content(t)

Ele. Capacity(KW)

Voltage(V)

Temperature(° C)

Melting Rate(t/h)

G/T-0.15-45

0.15

45

380

1200

0.15

G/T-0.3-75

0.3

75

380

1200

0.3

G/T-0.5-120

0.5

120

380

1200

0.5

G/T-0.75-185

0.75

185

380

1200

0.75

G/T-1-240

1

240

380

1200

1

G/T-1.5-400

1.5

400

380

1200

1.5

G/T-2-500

2

500

380

1200

2

G/T-3-700

3

700

380

1200

3

G/T-5-1500

5

1500

380

1200

5

Note: For brass, the Ele. Capacity will be 0.85 of the figure; Temperature(° C): 1250







Product Introduction:



The born and development of Melting Furnace for copper rod casting system that break the traditional copper and copper alloy producing way shorten the copper processing time. The traditional process is divided three steps of melting and casting, heating process and cooling process



Advantages:



i) Stable product quality;

ii) Low energy consumption;

iii) Removable inductor maintain easily;

iv) PLC controlling, and servo motor driven system;
