R6m / 2 Strands Steel Billet Casting , Rigid Self-adapting Dummy Bar

Large Image : R6m / 2 Strands Steel Billet Casting , Rigid Self-adapting Dummy Bar

Product Details:

Place of Origin:	Wuxi,China (Mainland)
Brand Name:	HAIJUN
Model Number:	R6M 2strands

Payment & Shipping Terms:

Minimum Order Quantity:	2 strands
Packaging Details:	Container
Delivery Time:	2 months
Payment Terms:	T/T,L/C
Supply Ability:	30 strands CCM per year

Contact Now

Detailed Product Description

High Light:

continuous casting machines

horizontal casting machine

R6m / 2 Strands Steel Billet Casting , Rigid Self-adapting Dummy Bar

Ladle turret, Ladle car

radius: R6M

Strand number : 2 strands

with ISO certification

advanced design

Description:

1. Basic standby technical parameters:

Steel billet casting machine radius	6m
Strand quantity	2 strands
Ladle support type	Ladle turret, Ladle car
Tundish carriage	Semi-portal, cross sliding function
Casting method	Metering nozzle, open casting
Secondary cooling	Water cooling , 1 adjusting circuit

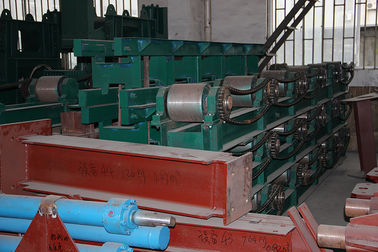

Withdrawal straightening machine	Totally 5 roller, progressive straightening
Roll table	Chain group centralized drive
Dummy bar	Rigid, with self-adapting dummy bar head
Billet cutting	Hydraulic cutting machine
Billet conveying	Group centralized live roller table
Cooling bank type	Simple cooling bed

2. Technical process description and capacity of steel billet CCM

Induction furnace:

Nominal capacity	15T
Tap-to-tap cycle	60min
Furnace quantity	3sets

Production capacity

Working days	330 days/year
Average number of daily furnace	24/day
Production capacity	200,000t/year

3. Casting speed, productivity and strand quantity

R6m radius casting machine can cast steel groups of different specifications, the maximum casting speed is as follows:

Casting sectional area(mm)	100×100	125×125	150×150
Casting speed(m/min)	2.8	2.6	2.4

NO.	Billet size	Casting speed	hourly output (tons)	Daily output 20hour (tons)	Annual output(300days) (tons)
1	100×100	2.8m/min	10.55	211	63302
2	125×125	2.6m/min	15.31	306	918445
3	150×150	2.4m/min	20.35	407	122,083

The calculation results is the ideal state of the production, please according to own actual situation of adjustment.

Steel grade	Casting grade(m/min)	Effective deformation rate(ε)	Allowable deformation rate(ε_max)
Straight carbon steel	1.8～2.5	Please refer to the computational table	0.25
Low alloy steel	1.3～2.0	Please refer to the computational table	0.15～0.2
